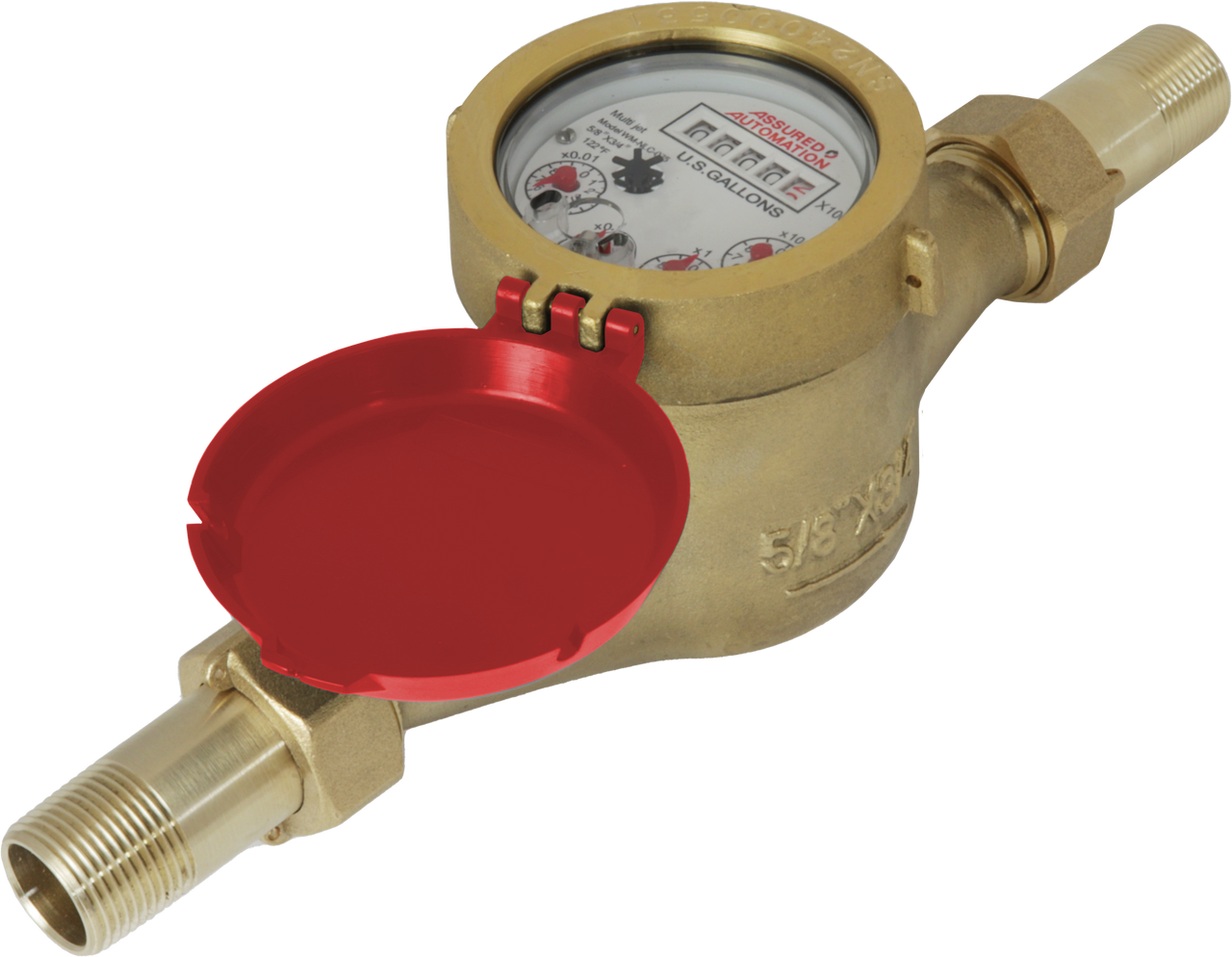

WM-NLCH Series HOT Potable Water Meter

The WM-NLCH Series Lead Free Brass multi-jet water meter is excellent for residential hot water metering. It uses the time proven multi-jet principle to measure flow totals.

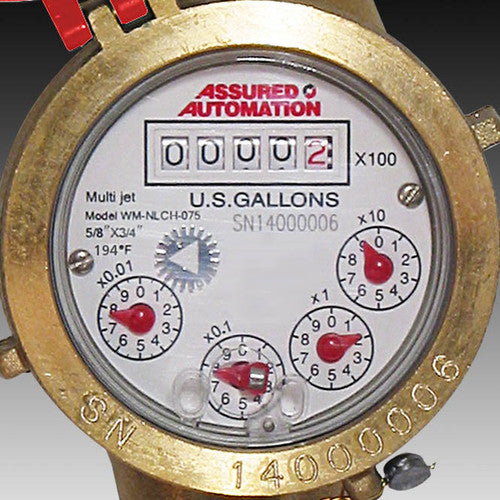

The gear train drives the register totalizer dials. This water meters are BPA free and meet NSF 61/372 Annex G lead free regulations but are not yet certified. They are also designed to meet the AWWA C708 Standards.

These meters are frequently used as an economical solution for residential water measuring. This product is a rare example of when inexpensive doesn't equal "cheap"!  It is one of the least expensive hot water meters available without sacrificing accuracy or durability.

Applications:

• Residential water sub-meter
• Manufacturing lines
• Food & beverage
• Brewing and distilling

These meters are equipped for an optional pulse output in case you want to send the data to a remote display, wireless transceiver, or other control device.

The 1/2", 3/4" and 1" meters can have 10 pulses per gallon, 1 pulse per gallon, 1 pulse per 10 gallons, or 1 pulse per 100 gallons.

The 1 1/2" & 2" meters can have 1 pulse per gallon, 1 pulse per 10 gallons, or 1 pulse per 100 gallons.

All meters come with plastic union fittings and must be installed horizontally with the face up.

Meter Type: Multi-Jet
Connection
Type: NPT Male Threaded
Body Material: Brass (lead free)
Internals: High Temperature Engineered Thermoplastic
Sizes:1/2", 3/4", 1", 1 1/2", 2"
Units of Measure: Gallons
Max. Pressure:150 psi
Max. Temperature:194˚F (90˚C)
Water Temperature: Hot
Accuracy:+/- 1.5% of reading
Installation Orientation: Horizontal Only (with face up)
Functions: Totalizer Only
Pulse Output*:Reed Switch
Lead Free Status: Meets NSF criteria but not certified

Note: Pipe sizes are based on INNER diameter NOT OUTER diameter.
Use the HELP link if you are unsure about your line size.
