Winters Instruments

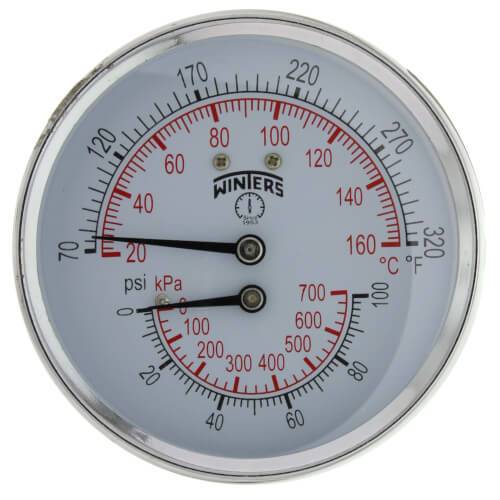

Winters TTD Series Tridicator 3" Dial, 1/2" NPT Back, 0-100 psi/kPa, 70-320 F/C
Quantity:
- TTD Series Tridicator
- Applications: Hot water and steam pressure for boilers
- 3 in
- white aluminum dial
- Black steel case
- Glass lens
- Chrome ring
- Brass stem, socket, and tube
- Brass and phosphor bronze movement
- Bi-metallic coil sensing element on the temperature side
- Bourdon tube sensing element on the pressure side
- Anodized black aluminum pointer
- Tin-alloy solder welding
- Pressure limit is 75% of the full scale range
- Ambient Temperature is 23 to 122 �F
- Process Temperature is 75% of full scale range
- Pressure Accuracy is +/-3-2-3%
- Temperature accuracy is +/-3% of full scale value
- IP50 Enclosure rating
- 1/2 in
- NPT back connection
- Pressure and temperature ranges of 0 to 100 psi/kPa and 70 to 320 �F/�C
