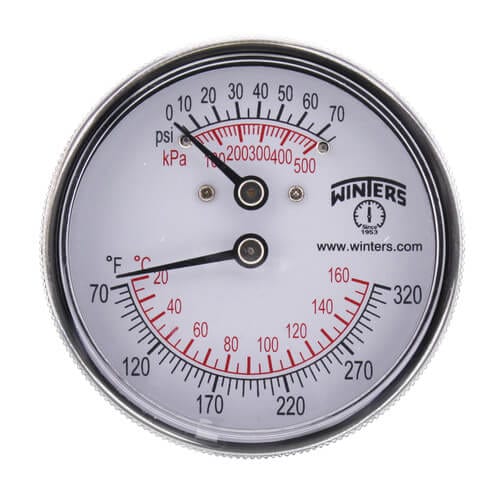

Winters TTD Series Tridicator 2.5" Dial, 1/4" NPT Extension Back, 0-75 psi/kPa, 70-320 F/C
Winters TTD Series Tridicator 2.5" Dial, 1/4" NPT Extension Back, 0-75 psi/kPa, 70-320 F/C

Winters Instruments

Winters TTD Series Tridicator 2.5" Dial, 1/4" NPT Extension Back, 0-75 psi/kPa, 70-320 F/C

Sale price$26.59
SKU: TTD401
Quantity:
  • TTD Series Tridicator
  • Applications: Hot water and steam pressure for boilers
  • 2
  • 5 in
  • white aluminum dial
  • Black steel case
  • Plexiglass lens
  • Acrylic, threaded ring
  • Brass stem, socket, and tube
  • Brass and phosphor bronze movement
  • Bi-metallic coil sensing element on the temperature side
  • Bourdon tube sensing element on the pressure side
  • Anodized black aluminum pointer
  • Tin-alloy solder welding
  • Pressure limit is 75% of the full scale range
  • Ambient Temperature is 23 to 122 �F
  • Process Temperature is 75% of full scale range
  • Pressure Accuracy is +/-3-2-3%
  • Temperature accuracy is +/-3% of full scale value
  • IP50 Enclosure rating
  • 1/4 in
  • NPT extension back connection
  • Pressure and temperature ranges of 0 to 75 psi/kPa and 70 to 320 �F/�C
