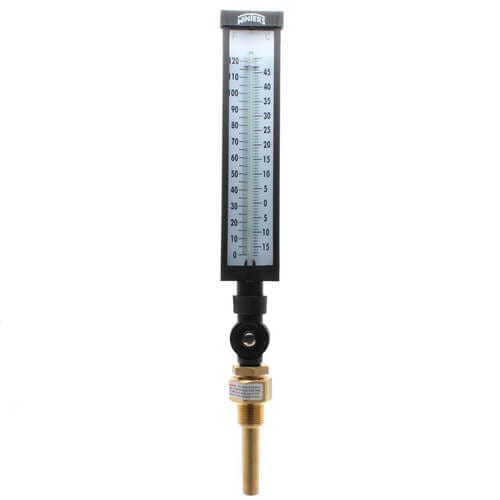

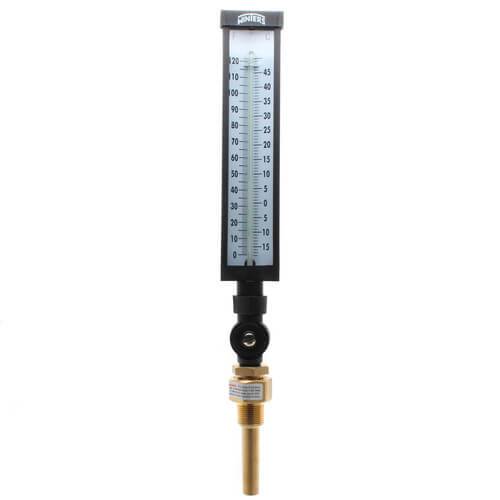

Winters TIM Series Industrial 9" Thermometer, 3.5" Stem, Valox Case, 0-120 F/C
Winters TIM Series Industrial 9" Thermometer, 3.5" Stem, Valox Case, 0-120 F/C

Winters Instruments

Winters TIM Series Industrial 9" Thermometer, 3.5" Stem, Valox Case, 0-120 F/C

Sale price$56.97
SKU: TIM102
Quantity:
  • Industrial 9IT Thermometer with a Brass Thermowell
  • Vari-angle connection and 360 degree case rotation or easy installation
  • Graphite filled bulb chamber for maximum heat conduction
  • Warranty: 5 Years
  • Lens: Glass
  • Accuracy: �1%
  • Scale Size: 9 in
  • (230mm)
  • Scales: Aluminum painted white with black markings
  • Bulb Chamber: Tapered cast aluminum with graphite fill
  • Sensing Liquid: Organic Fill
  • Adjustment: Fully adjustable
  • Enclosure Rating: IP54
  • Connection: 3/4 in
  • NPT with Thermowell, 1-1/4in - 18 UNEF Swivel Nut (no thermowell)
  • Thermowell: 3/4 in
  • Brass
  • Case: Valox, Impact Resistant
  • Stem Length: 3
  • 5 in
  • (90 mm)
  • Range: 0�F to 120�F & -15�C to 50�C
