Winters Instruments

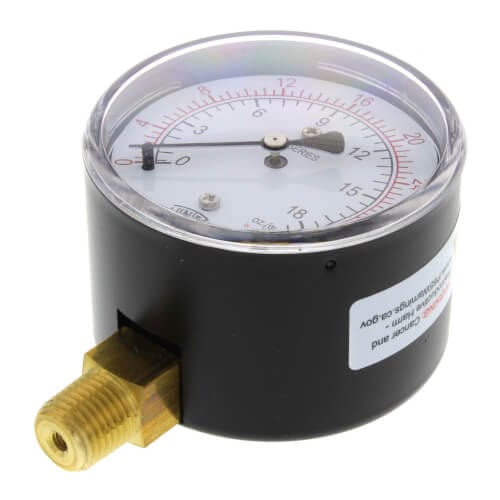

Winters PLP Series Low Pressure Gauge 0-10 psi/kPa
Quantity:
- PLP Series Low Pressure Gauge is mainly used to measure natural gas pressure as well as air flow indication and leak detection, vacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators
- 2.5in
- white aluminum dial with black and red markings
- Black steel case
- Polycarbonate lens
- Steel ring
- Brass socket
- Phosphor bronze diaphragm element
- Engineering plastic upper and lower plate with brass pinion and sector movement
- Black aluminum pointer
- Working pressures are 60% of full scale value (fluctuating) and 75% of full scale value (static)
- Over-pressure limit is 30% of full scale value
- Ambient Temperature is -40 to 150�F
- IP52 enclosure rating
- +/-3-2-3% ASME grade B accuracy
- 1/4in
- NPT bottom connection
- Pressure range of 0-10 psi/kPa
