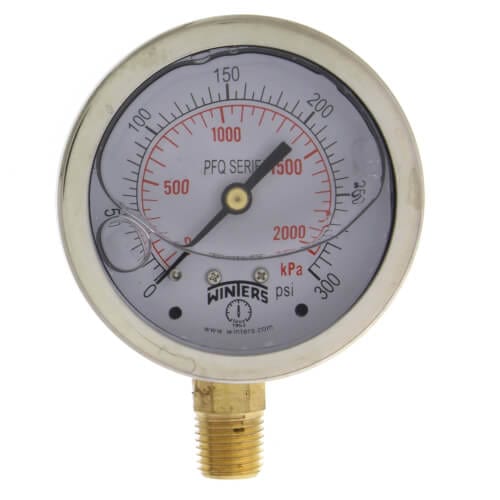

Winters PFQ Series SS Liquid Filled Gauge 0-300 psi/kPa
Quantity:
- PFQ Series Stainless Steel Liquid Filled Pressure Gauge is ideal for plumbing, heating, air conditioning, pumps, compressors and pneumatic equipment
- It has a pulsation resistant, liquid filled stainless steel case
- CRN registered
- Warranty: 5 years
- Dial: White aluminum with black and red markings
- Lens: Polycarbonate
- Fill Fluid: Glycerin
- Case: 304 SS
- Socket: Brass
- Bourdon Tube: phosphor bronze C or coil shaped
- Movement: Brass
- Socket Gasket: Buna N for two-piece internal socket seal
- Working Pressure: Maximum 75% of full scale value
- Over Pressure Limit: 25%
- Ambient Temperature: -4F to 150F (-20C to 65C)
- Dial Size: 2
- 5 in
- (63mm)
- Connection: 1/4 in
- NPT Bottom connect with restricted orifice
- Accuracy: 1
- 5% of Full Scale Value
- Range: 0-300 PSI/KPA
