Winters Instruments

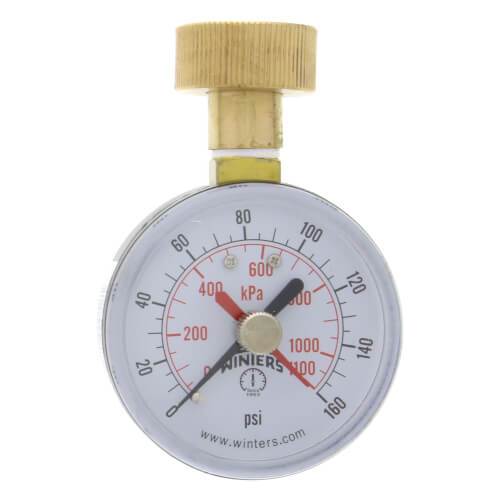

Winters PETM Series Economy Test Gauge with Maximum Pointer 0-160 psi/kPa
Quantity:
- PETM Series Water Test Gauge with a Maximum Pointer is used mainly in residential and commercial pressure testing of water lines
- Economical pressure gauge and valve body assembly used for pressure testing
- CRN registered
- Warranty: 5 Years
- Dial: White aluminum with black and red markings
- Case: Steel, painted black
- Ring: Steel, painted black
- Lens: Polycarbonate
- Bourdon Tube: phosphor bronze
- Movement: Brass
- Working Pressure: Maximum 75% of full scale value
- Enclosure Rating: IP52
- Accuracy: �3-2-3% ANSI/ASME Grade B
- Water Test: 32�F to 150�F
- Dial Size: 2.5 in
- (63mm)
- Range: 0-160 PSI/KPA
- Connection: 3/4 in
- Female Swivel Hose Connection
- Maximum Pointer Included
