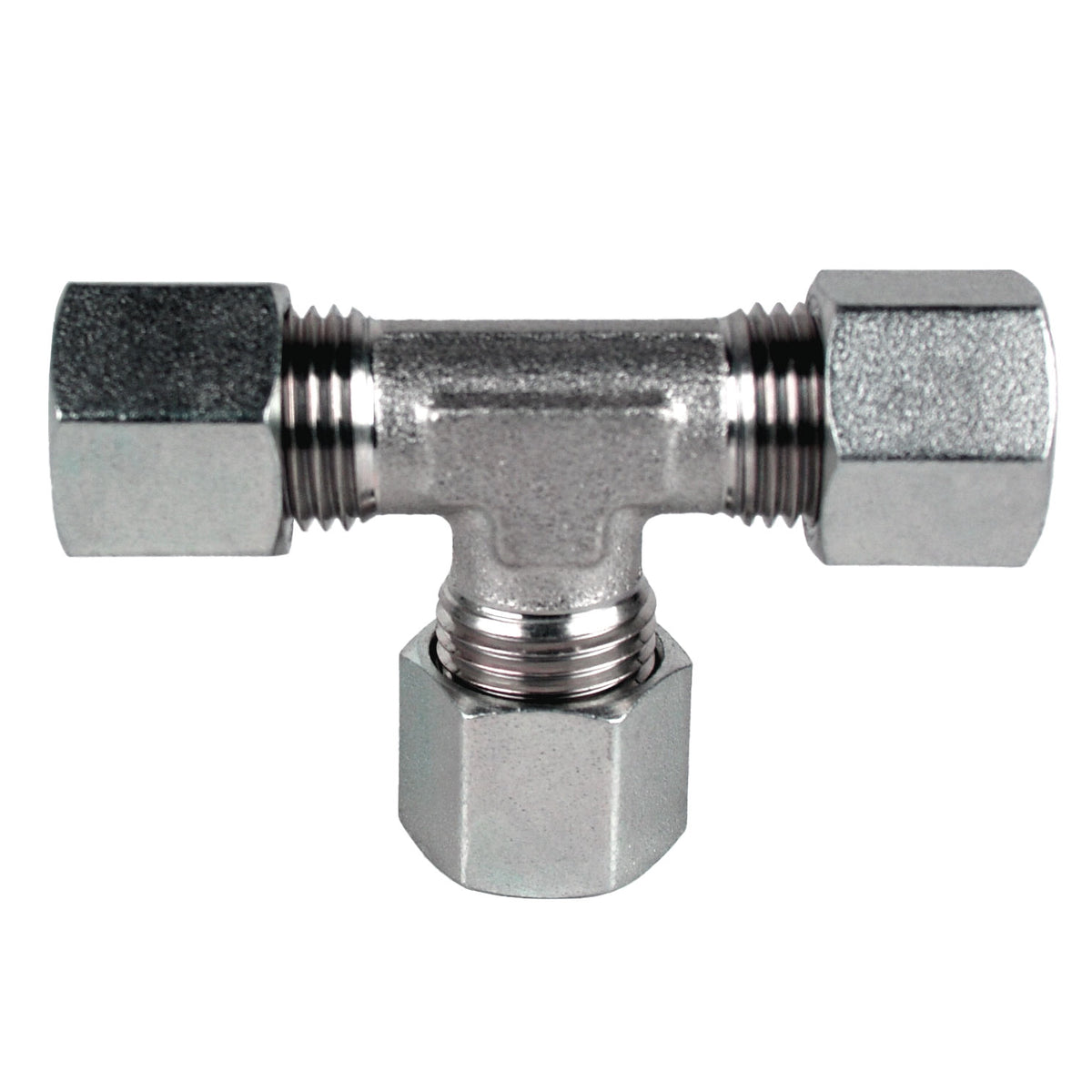

Union Tee, L08 Metric Bite Type x L08 Metric Bite Type x L12 Metric Bite Type, Steel

Midland Industries

Union Tee, L08 Metric Bite Type x L08 Metric Bite Type x L12 Metric Bite Type, Steel

$7.19
SKU: D2603-L08-L08-L12
Quantity:

Union Tee, L08 Metric Bite Type x L08 Metric Bite Type x L12 Metric Bite Type, Steel

When performance matters, trust the D2603-L08-L08-L12 to maintain seal integrity under harsh thermal and mechanical stress. With zinc-plated carbon steel construction and precision-engineered threads, it’s built for long-term reliability in metric hydraulic systems.

  • Compatible with automated and mobile equipment lines
  • Supports leak-free installation under pressure surges
  • Optimized for hydraulic fluid systems and lubrication lines
  • DIN 2353 certified and ISO 8434-1 compliant
  • Flareless design with bite-type ferrule grip


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: L08
    • Connection Size 2: L08
    • Connection Size 3: M12
    • Connection Type: MBT|MBT|MBT
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Metric Bite Type
    • Connection Type 3: Metric Bite Type
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 26.4 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Tee
    • Material: Steel
    • Series: D2603
    • Thread Size 1: M14 x 1.5
    • Thread Size 2: M14 x 1.5
    • Thread Size 3: M18 x 1.5
    • California Prop 65: Cobalt
