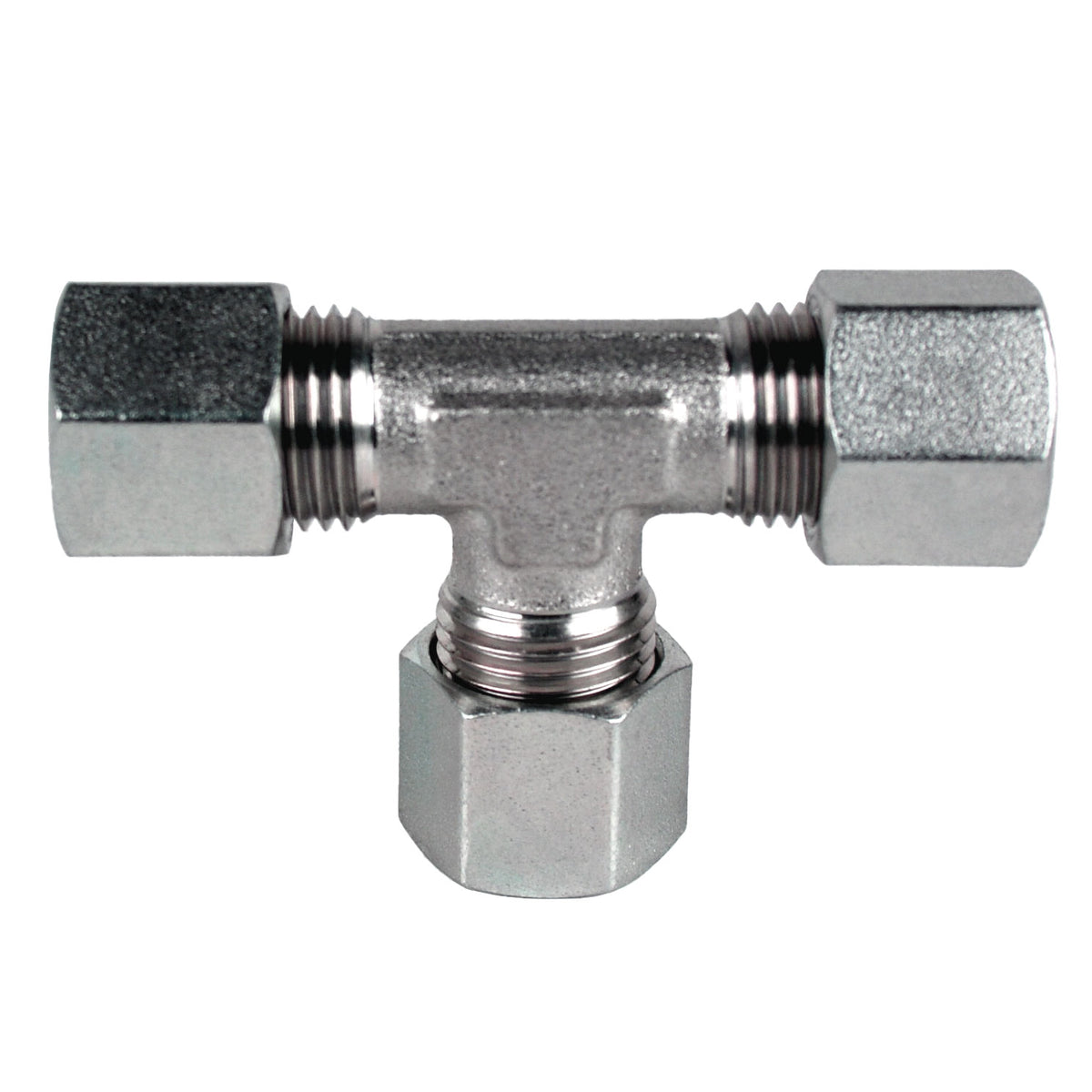

Union Tee, L08 Metric Bite Type x L08 Metric Bite Type x L08 Metric Bite Type, Steel

Midland Industries

Union Tee, L08 Metric Bite Type x L08 Metric Bite Type x L08 Metric Bite Type, Steel

$6.28
SKU: D2603-L08-L08-L08
Quantity:

Union Tee, L08 Metric Bite Type x L08 Metric Bite Type x L08 Metric Bite Type, Steel

With proven sealing technology and precision-fit threading, the D2603-L08-L08-L08 DIN fitting is ideal for fluid conveyance in industrial and mobile applications. Its design supports leak-free performance across high-pressure, high-vibration conditions.

  • Easy tube alignment for efficient installation
  • Supports leak-free installation under pressure surges
  • DIN 2353 certified and ISO 8434-1 compliant
  • Flareless design with bite-type ferrule grip
  • Resistant to vibration fatigue and thermal expansion


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: L08
    • Connection Size 2: L08
    • Connection Size 3: M8
    • Connection Type: MBT|MBT|MBT
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Metric Bite Type
    • Connection Type 3: Metric Bite Type
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 21.12 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Tee
    • Material: Steel
    • Series: D2603
    • Thread Size 1: M14 x 1.5
    • Thread Size 2: M14 x 1.5
    • Thread Size 3: M14 x 1.5
    • California Prop 65: Cobalt
