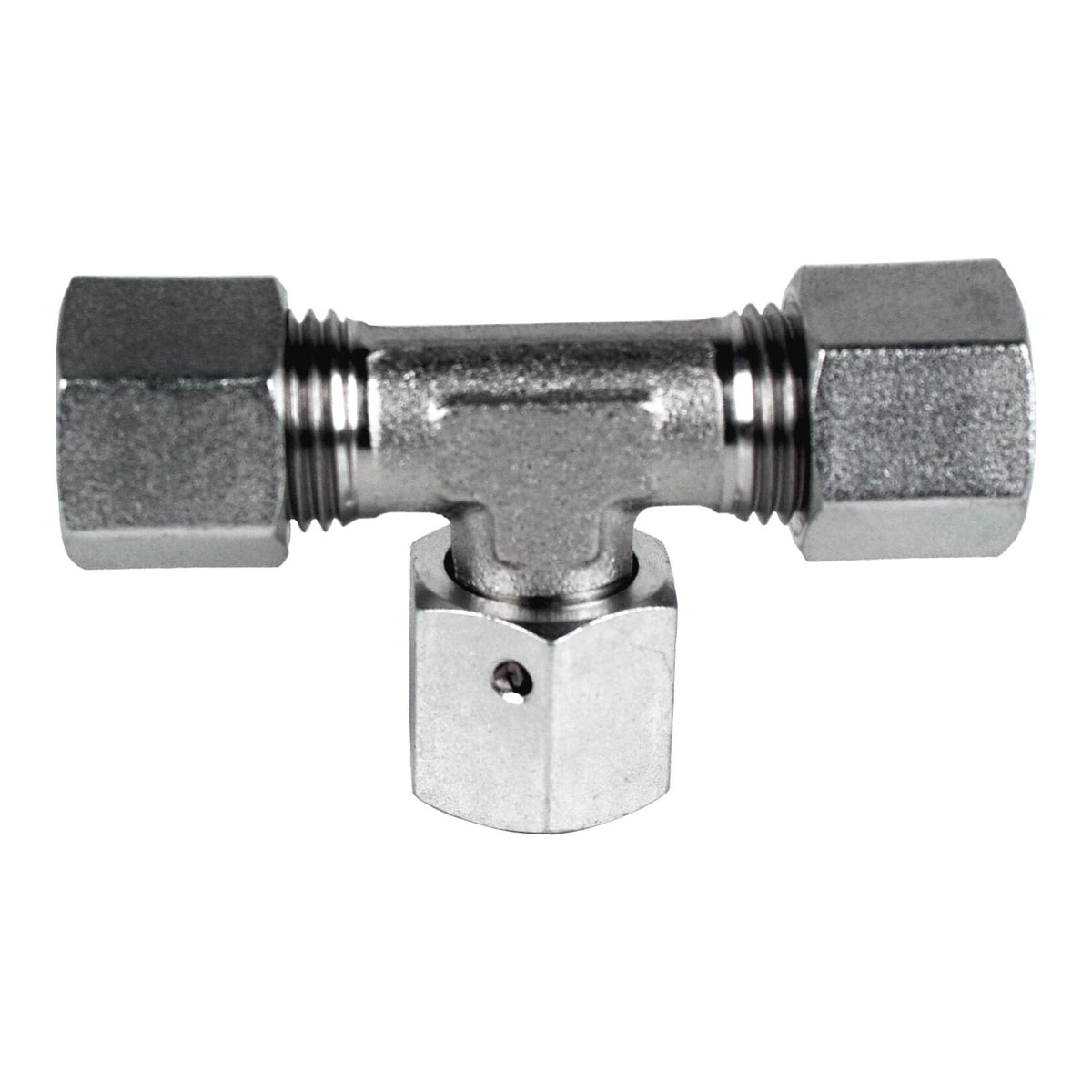

Swivel Branch Tee, S16 Metric Bite Type x S16 Metric Bite Type x S16 Female Metric Swivel, Steel

Midland Industries

Swivel Branch Tee, S16 Metric Bite Type x S16 Metric Bite Type x S16 Female Metric Swivel, Steel

$12.60
SKU: D6600-S16-S16-S16
Quantity:

Swivel Branch Tee, S16 Metric Bite Type x S16 Metric Bite Type x S16 Female Metric Swivel, Steel

Midland’s D6600-S16-S16-S16 is a dependable DIN metric compression fitting engineered for high-performance sealing. Its bite-type design ensures tubing is securely gripped, even under dynamic pressure loads. Carbon steel body construction with anti-corrosion plating guarantees long service life in challenging conditions.

  • Resistant to vibration fatigue and thermal expansion
  • Compatible with automated and mobile equipment lines
  • Optimized for hydraulic fluid systems and lubrication lines
  • Supports leak-free installation under pressure surges
  • Corrosion-resistant plating extends component life


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: S16
    • Connection Size 2: S16
    • Connection Size 3: S16
    • Connection Type: MBT|MBT|FMS
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Metric Bite Type
    • Connection Type 3: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 86 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Tee
    • Material: Steel
    • Series: D6600
    • Thread Size 1: M24 x 1.5
    • Thread Size 2: M24 x 1.5
    • Thread Size 3: M24 x 1.5
    • California Prop 65: Cobalt
