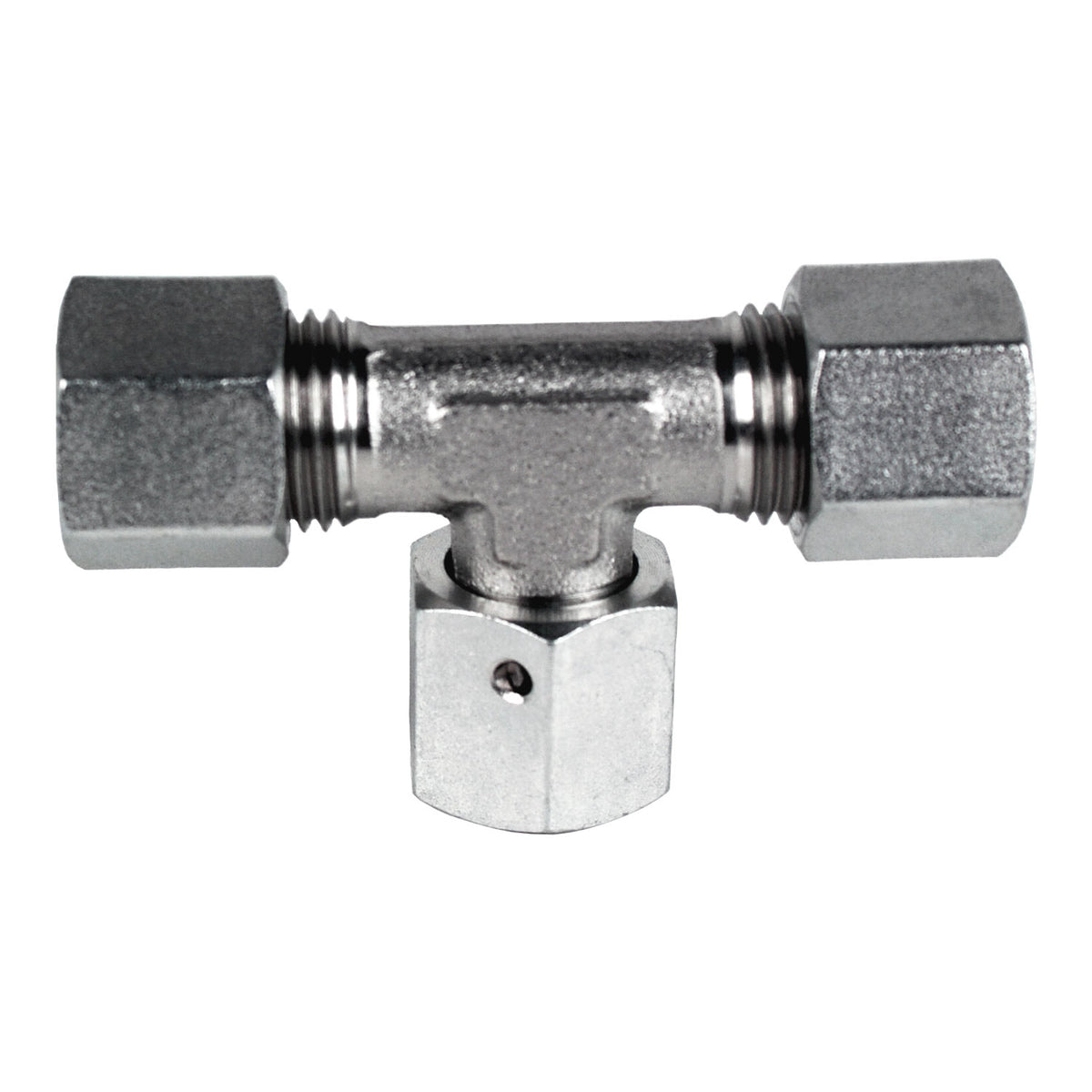

Swivel Branch Tee, S10 Metric Bite Type x S10 Metric Bite Type x S10 Female Metric Swivel, Steel

Midland Industries

Swivel Branch Tee, S10 Metric Bite Type x S10 Metric Bite Type x S10 Female Metric Swivel, Steel

$7.20
SKU: D6600-S10-S10-S10
Quantity:

Swivel Branch Tee, S10 Metric Bite Type x S10 Metric Bite Type x S10 Female Metric Swivel, Steel

Midland’s D6600-S10-S10-S10 is a dependable DIN metric compression fitting engineered for high-performance sealing. Its bite-type design ensures tubing is securely gripped, even under dynamic pressure loads. Carbon steel body construction with anti-corrosion plating guarantees long service life in challenging conditions.

  • Compatible with automated and mobile equipment lines
  • DIN 2353 certified and ISO 8434-1 compliant
  • Corrosion-resistant plating extends component life
  • Easy tube alignment for efficient installation
  • Flareless design with bite-type ferrule grip


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: S10
    • Connection Size 2: S10
    • Connection Size 3: S10
    • Connection Type: MBT|MBT|FMS
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Metric Bite Type
    • Connection Type 3: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 38 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Tee
    • Material: Steel
    • Series: D6600
    • Thread Size 1: M18 x 1.5
    • Thread Size 2: M18 x 1.5
    • Thread Size 3: M18 x 1.5
    • California Prop 65: Cobalt
