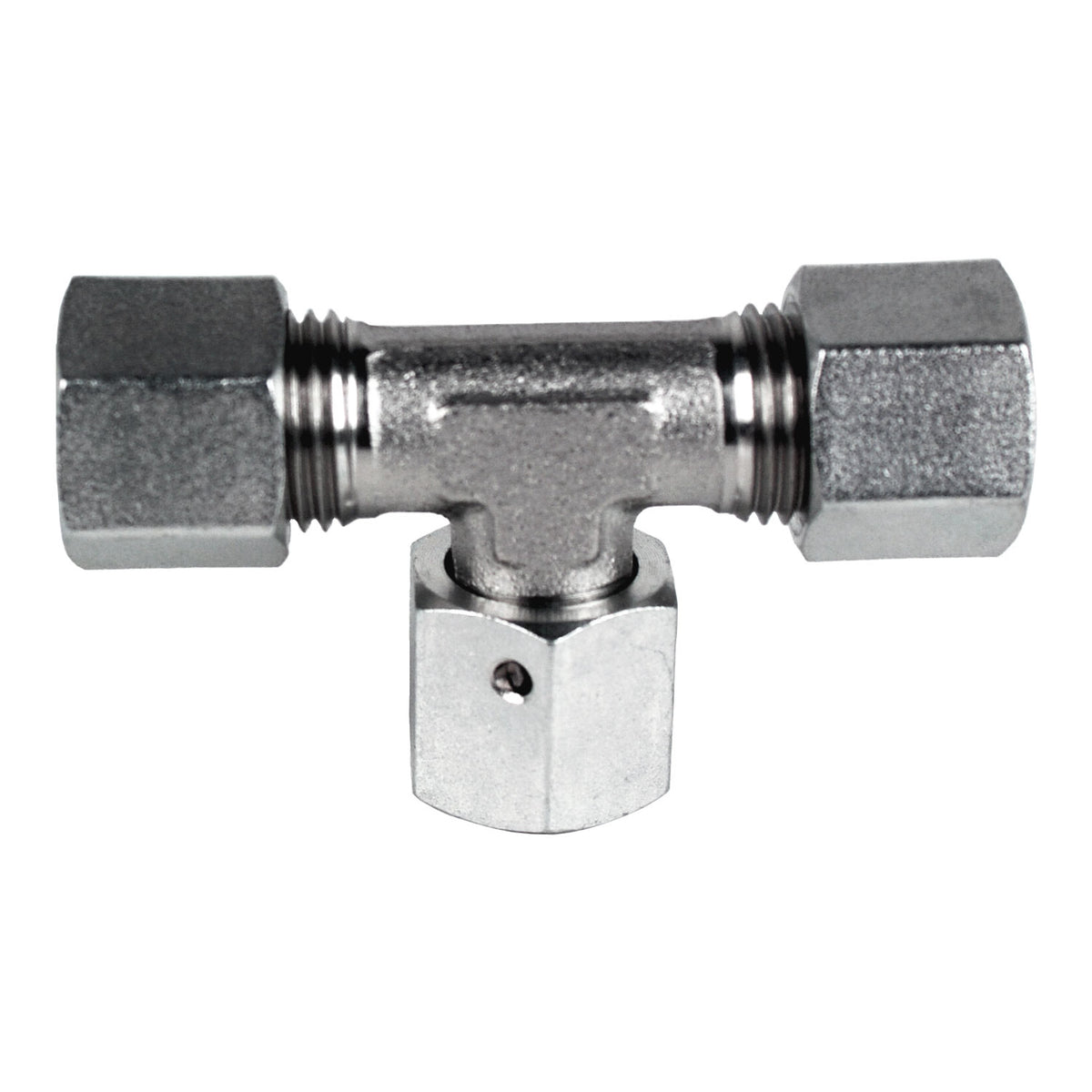

Swivel Branch Tee, L22 Metric Bite Type x L22 Metric Bite Type x L22 Female Metric Swivel, Steel

Midland Industries

Swivel Branch Tee, L22 Metric Bite Type x L22 Metric Bite Type x L22 Female Metric Swivel, Steel

$16.22
SKU: D6600-L22-L22-L22
Quantity:

Swivel Branch Tee, L22 Metric Bite Type x L22 Metric Bite Type x L22 Female Metric Swivel, Steel

Engineered to withstand the pressures of modern industry, the D6600-L22-L22-L22 compression fitting excels in hydraulic and automation systems. Designed to DIN 2353 standards, it delivers secure, vibration-resistant sealing with reliable corrosion protection.

  • Corrosion-resistant plating extends component life
  • DIN 2353 certified and ISO 8434-1 compliant
  • Supports leak-free installation under pressure surges
  • Easy tube alignment for efficient installation
  • Resistant to vibration fatigue and thermal expansion


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: L22
    • Connection Size 2: L22
    • Connection Size 3: L22
    • Connection Type: MBT|MBT|FMS
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Metric Bite Type
    • Connection Type 3: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 88 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Tee
    • Material: Steel
    • Series: D6600
    • Thread Size 1: M30 x 2
    • Thread Size 2: M30 x 2
    • Thread Size 3: M30 x 2
    • California Prop 65: Cobalt
