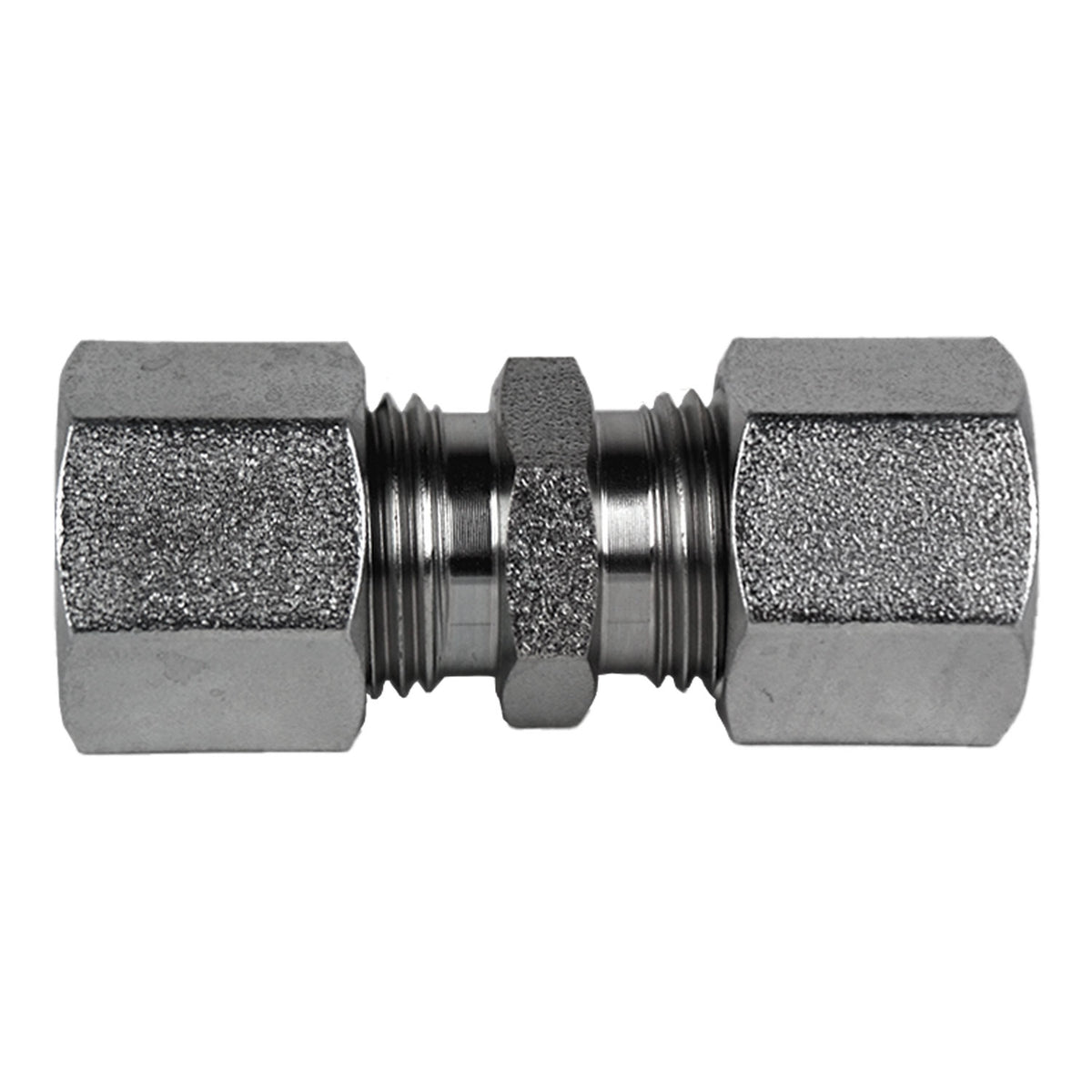

Straight Union, S10 Metric Bite Type x S08 Metric Bite Type, Steel

Midland Industries

Straight Union, S10 Metric Bite Type x S08 Metric Bite Type, Steel

$3.77
SKU: D2403-S10-S08
Quantity:

Straight Union, S10 Metric Bite Type x S08 Metric Bite Type, Steel

Engineered to withstand the pressures of modern industry, the D2403-S10-S08 compression fitting excels in hydraulic and automation systems. Designed to DIN 2353 standards, it delivers secure, vibration-resistant sealing with reliable corrosion protection.

  • DIN 2353 certified and ISO 8434-1 compliant
  • Resistant to vibration fatigue and thermal expansion
  • Optimized for hydraulic fluid systems and lubrication lines
  • Corrosion-resistant plating extends component life
  • Supports leak-free installation under pressure surges


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: S10
    • Connection Size 2: S08
    • Connection Type: MBT|MBT
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Metric Bite Type
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 49 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Union
    • Material: Steel
    • Series: D2403
    • Thread Size 1: M18 x 1.5
    • Thread Size 2: M16 x 1.5
    • California Prop 65: Cobalt
