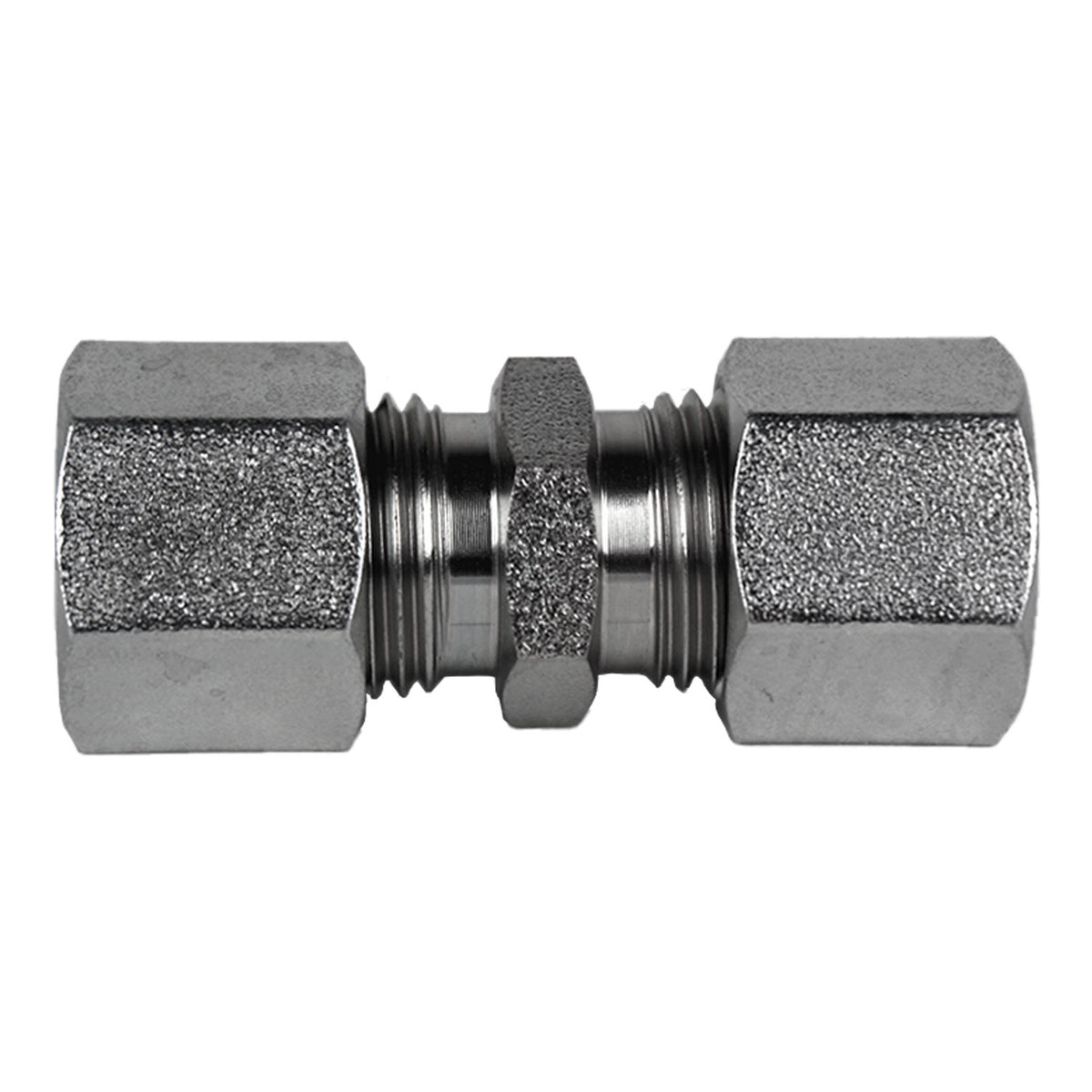

Straight Union, L10 Metric Bite Type x L08 Metric Bite Type, Steel

Midland Industries

Straight Union, L10 Metric Bite Type x L08 Metric Bite Type, Steel

$3.26
SKU: D2403-L10-L08
Quantity:

Straight Union, L10 Metric Bite Type x L08 Metric Bite Type, Steel

With proven sealing technology and precision-fit threading, the D2403-L10-L08 DIN fitting is ideal for fluid conveyance in industrial and mobile applications. Its design supports leak-free performance across high-pressure, high-vibration conditions.

  • Supports leak-free installation under pressure surges
  • DIN 2353 certified and ISO 8434-1 compliant
  • Optimized for hydraulic fluid systems and lubrication lines
  • Compatible with automated and mobile equipment lines
  • Corrosion-resistant plating extends component life


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: L10
    • Connection Size 2: L08
    • Connection Type: MBT|MBT
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Metric Bite Type
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 42 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Union
    • Material: Steel
    • Series: D2403
    • Thread Size 1: M16 x 1.5
    • Thread Size 2: M14 x 1.5
    • California Prop 65: Cobalt
