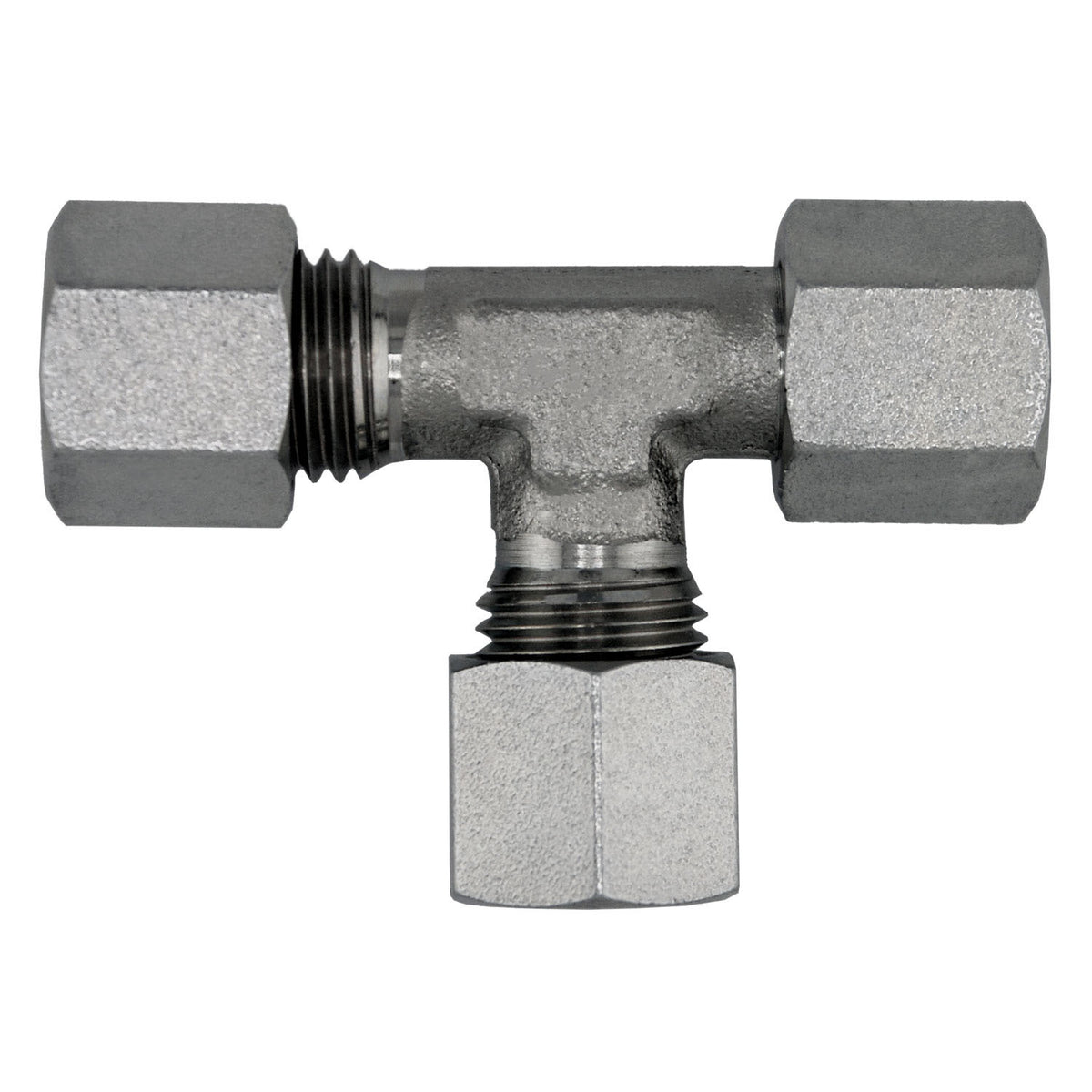

Run Tee, S38 Metric Bite Type x S38 Female Metric Swivel x S38 Metric Bite Type, Steel

Midland Industries

Run Tee, S38 Metric Bite Type x S38 Female Metric Swivel x S38 Metric Bite Type, Steel

$60.42
SKU: D6602-S38-S38-S38
Quantity:

Run Tee, S38 Metric Bite Type x S38 Female Metric Swivel x S38 Metric Bite Type, Steel

Midland’s D6602-S38-S38-S38 is a dependable DIN metric compression fitting engineered for high-performance sealing. Its bite-type design ensures tubing is securely gripped, even under dynamic pressure loads. Carbon steel body construction with anti-corrosion plating guarantees long service life in challenging conditions.

  • Compatible with automated and mobile equipment lines
  • Flareless design with bite-type ferrule grip
  • Supports leak-free installation under pressure surges
  • Optimized for hydraulic fluid systems and lubrication lines
  • Easy tube alignment for efficient installation


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: S38
    • Connection Size 2: S38
    • Connection Size 3: S38
    • Connection Type: MBT|FMS|MBT
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Female Metric Swivel
    • Connection Type 3: Metric Bite Type
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 135.5 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Tee
    • Material: Steel
    • Series: D6602
    • Thread Size 1: M52 x 2
    • Thread Size 2: M52 x 2
    • Thread Size 3: M52 x 2
    • California Prop 65: Cobalt
