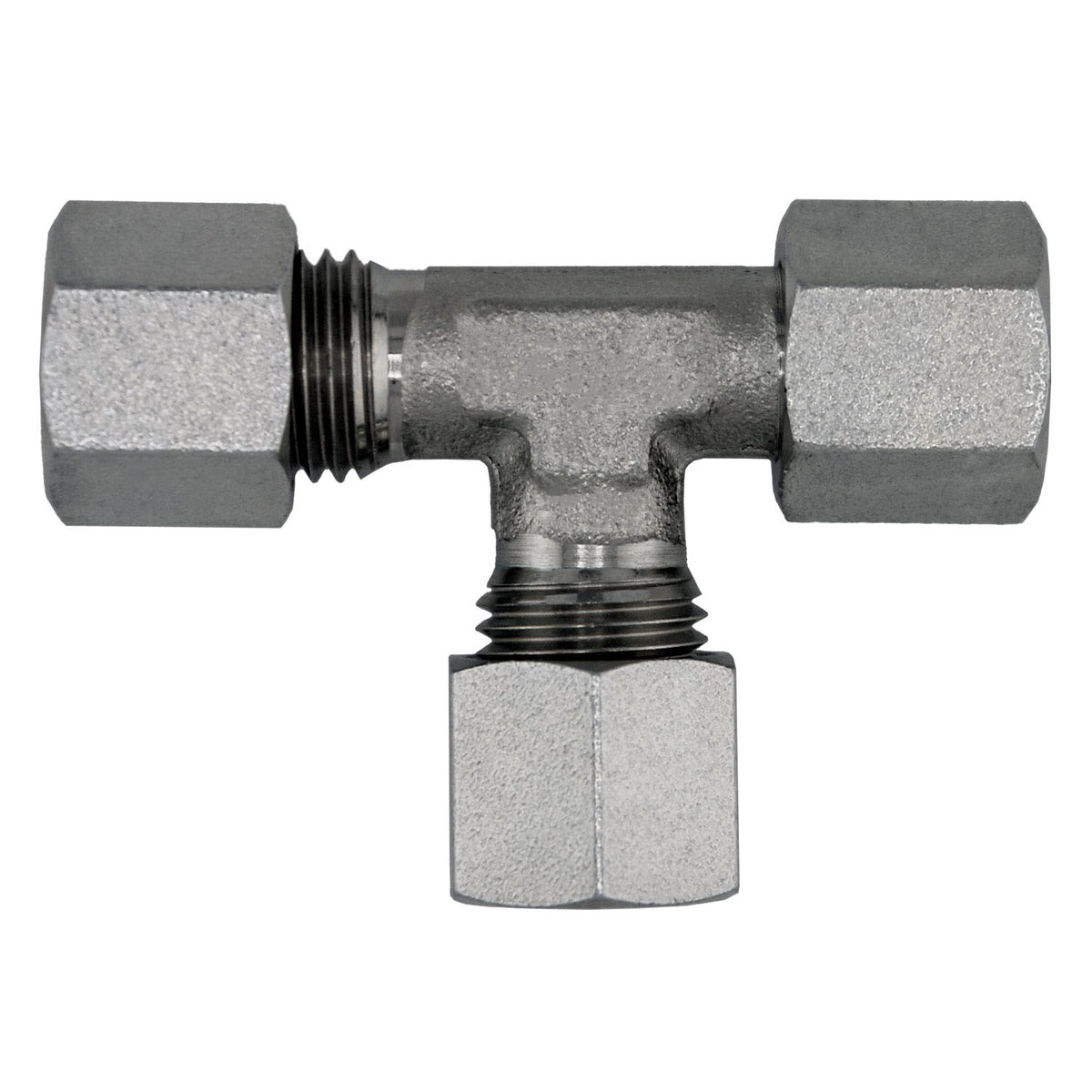

Run Tee, S20 Metric Bite Type x S20 Female Metric Swivel x S20 Metric Bite Type, Steel

Midland Industries

Run Tee, S20 Metric Bite Type x S20 Female Metric Swivel x S20 Metric Bite Type, Steel

$17.03
SKU: D6602-S20-S20-S20
Quantity:

Run Tee, S20 Metric Bite Type x S20 Female Metric Swivel x S20 Metric Bite Type, Steel

When performance matters, trust the D6602-S20-S20-S20 to maintain seal integrity under harsh thermal and mechanical stress. With zinc-plated carbon steel construction and precision-engineered threads, it’s built for long-term reliability in metric hydraulic systems.

  • Flareless design with bite-type ferrule grip
  • Compatible with automated and mobile equipment lines
  • Corrosion-resistant plating extends component life
  • Optimized for hydraulic fluid systems and lubrication lines
  • Resistant to vibration fatigue and thermal expansion


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: S20
    • Connection Size 2: S20
    • Connection Size 3: S20
    • Connection Type: MBT|FMS|MBT
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Female Metric Swivel
    • Connection Type 3: Metric Bite Type
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 98.5 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Tee
    • Material: Steel
    • Series: D6602
    • Thread Size 1: M30 x 2
    • Thread Size 2: M30 x 2
    • Thread Size 3: M30 x 2
    • California Prop 65: Cobalt
