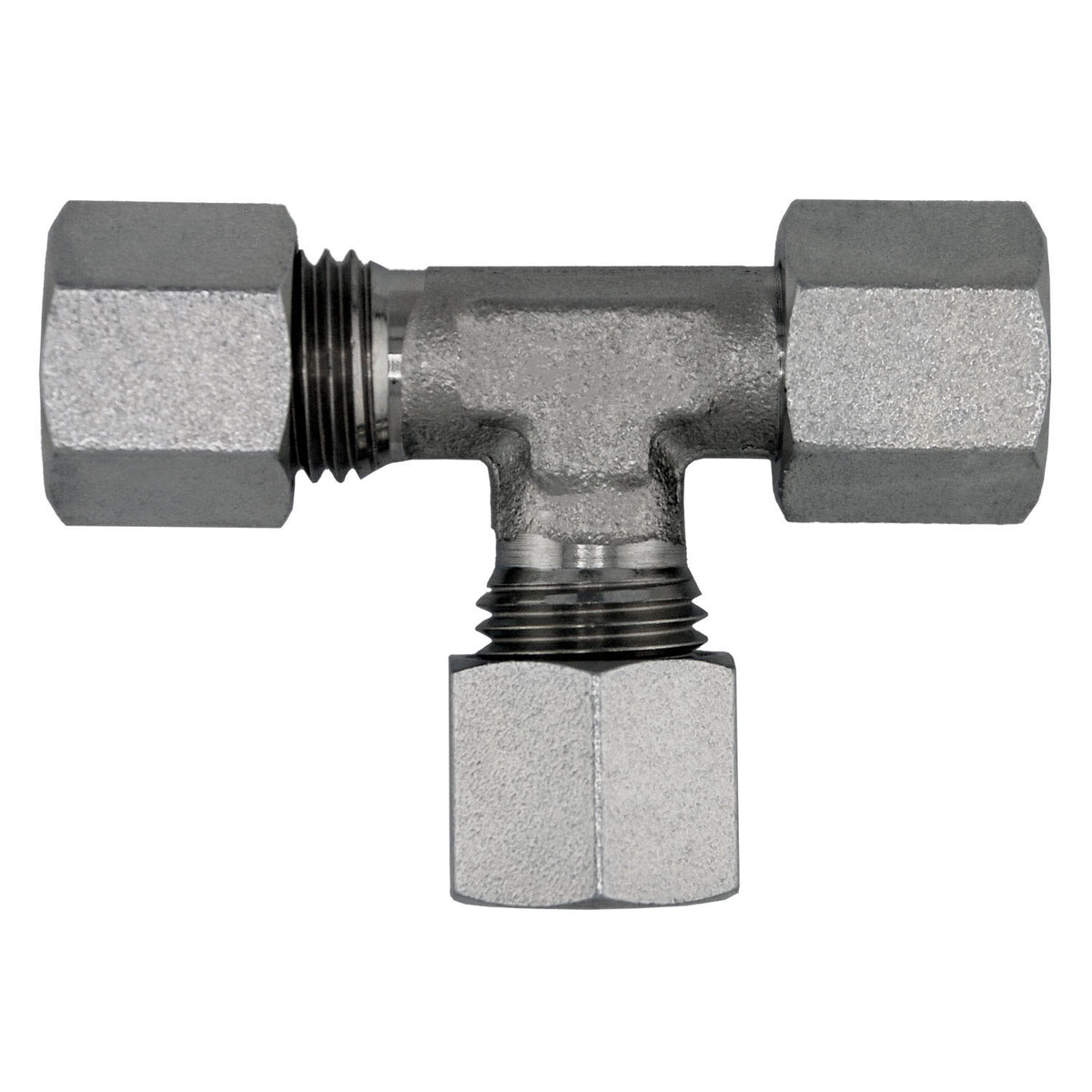

Run Tee, S06 Metric Bite Type x S06 Female Metric Swivel x S06 Metric Bite Type, Steel

Midland Industries

Run Tee, S06 Metric Bite Type x S06 Female Metric Swivel x S06 Metric Bite Type, Steel

$5.70
SKU: D6602-S06-S06-S06
Quantity:

Run Tee, S06 Metric Bite Type x S06 Female Metric Swivel x S06 Metric Bite Type, Steel

With proven sealing technology and precision-fit threading, the D6602-S06-S06-S06 DIN fitting is ideal for fluid conveyance in industrial and mobile applications. Its design supports leak-free performance across high-pressure, high-vibration conditions.

  • Corrosion-resistant plating extends component life
  • Resistant to vibration fatigue and thermal expansion
  • Optimized for hydraulic fluid systems and lubrication lines
  • Compatible with automated and mobile equipment lines
  • Flareless design with bite-type ferrule grip


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: S06
    • Connection Size 2: S06
    • Connection Size 3: S06
    • Connection Type: MBT|FMS|MBT
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Female Metric Swivel
    • Connection Type 3: Metric Bite Type
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 58 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Tee
    • Material: Steel
    • Series: D6602
    • Thread Size 1: M14 x 1.5
    • Thread Size 2: M14 x 1.5
    • Thread Size 3: M14 x 1.5
    • California Prop 65: Cobalt
