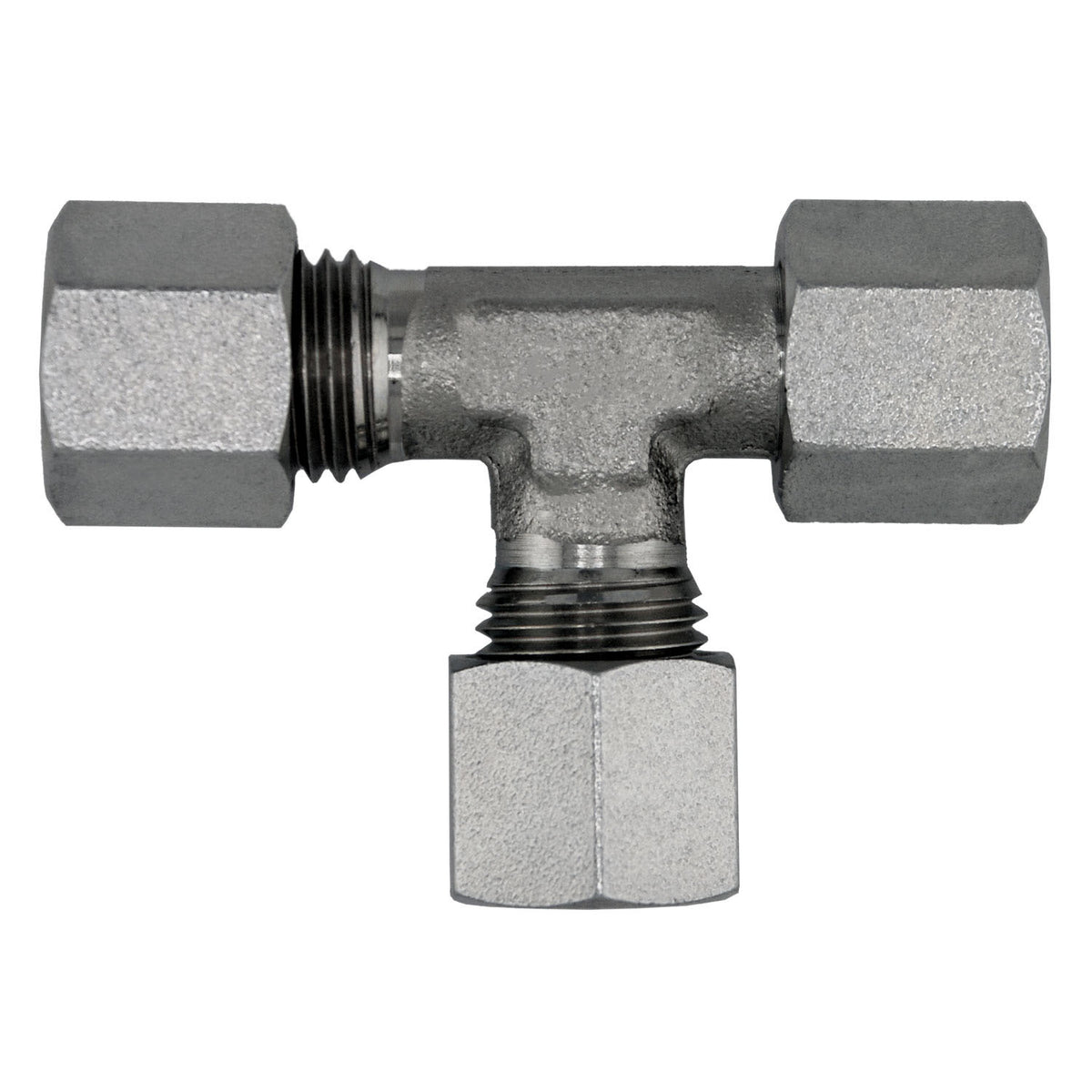

Run Tee, L22 Metric Bite Type x L22 Female Metric Swivel x L22 Metric Bite Type, Steel

Midland Industries

Run Tee, L22 Metric Bite Type x L22 Female Metric Swivel x L22 Metric Bite Type, Steel

$16.17
SKU: D6602-L22-L22-L22
Quantity:

Run Tee, L22 Metric Bite Type x L22 Female Metric Swivel x L22 Metric Bite Type, Steel

With proven sealing technology and precision-fit threading, the D6602-L22-L22-L22 DIN fitting is ideal for fluid conveyance in industrial and mobile applications. Its design supports leak-free performance across high-pressure, high-vibration conditions.

  • Supports leak-free installation under pressure surges
  • Corrosion-resistant plating extends component life
  • Flareless design with bite-type ferrule grip
  • Resistant to vibration fatigue and thermal expansion
  • Compatible with automated and mobile equipment lines


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: L22
    • Connection Size 2: L22
    • Connection Size 3: L22
    • Connection Type: MBT|FMS|MBT
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Female Metric Swivel
    • Connection Type 3: Metric Bite Type
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 81.5 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Tee
    • Material: Steel
    • Series: D6602
    • Thread Size 1: M30 x 2
    • Thread Size 2: M30 x 2
    • Thread Size 3: M30 x 2
    • California Prop 65: Cobalt
