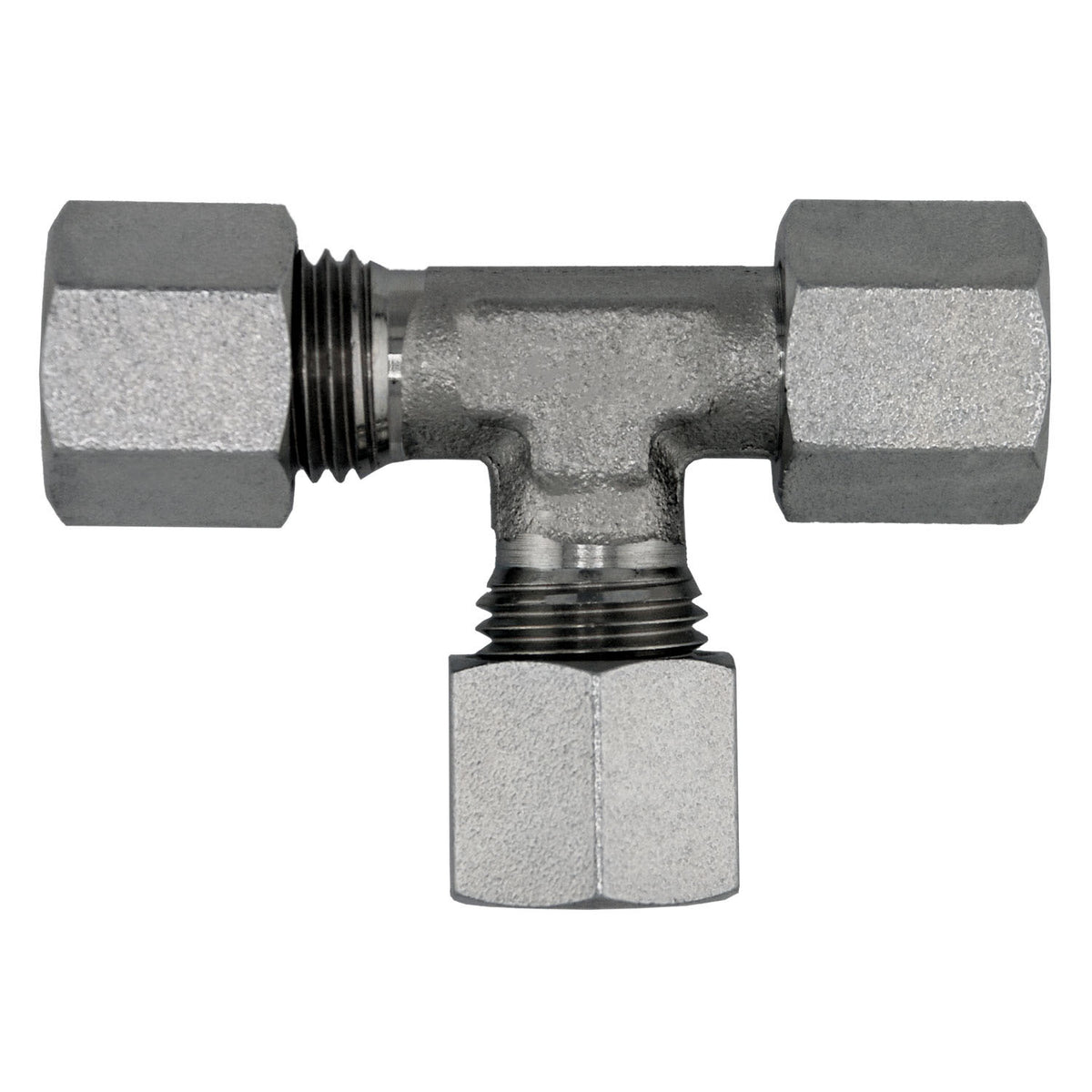

Run Tee, L15 Metric Bite Type x L15 Female Metric Swivel x L15 Metric Bite Type, Steel

Midland Industries

Run Tee, L15 Metric Bite Type x L15 Female Metric Swivel x L15 Metric Bite Type, Steel

$9.07
SKU: D6602-L15-L15-L15
Quantity:

Run Tee, L15 Metric Bite Type x L15 Female Metric Swivel x L15 Metric Bite Type, Steel

Engineered to withstand the pressures of modern industry, the D6602-L15-L15-L15 compression fitting excels in hydraulic and automation systems. Designed to DIN 2353 standards, it delivers secure, vibration-resistant sealing with reliable corrosion protection.

  • Compatible with automated and mobile equipment lines
  • Corrosion-resistant plating extends component life
  • Supports leak-free installation under pressure surges
  • Resistant to vibration fatigue and thermal expansion
  • Flareless design with bite-type ferrule grip


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: L15
    • Connection Size 2: L15
    • Connection Size 3: L15
    • Connection Type: MBT|FMS|MBT
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Female Metric Swivel
    • Connection Type 3: Metric Bite Type
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 68.5 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Tee
    • Material: Steel
    • Series: D6602
    • Thread Size 1: M22 x 1.5
    • Thread Size 2: M22 x 1.5
    • Thread Size 3: M22 x 1.5
    • California Prop 65: Cobalt
