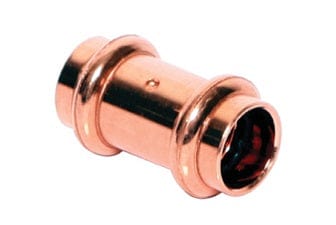

Press Copper Coupling w/Stop, 1-1/2'' x 1-1/2''

JW Press provides safe and economical copper pipe installation systems.

Operating Parameters

• Operating Pressure 200 PSI Max
• Test Pressure 600 PSI Max
• Low Pressure Steam 15 PSI Max
• Vacuum 24.5" Mercury Max @ 68d Degrees F
• Operating Temperature 0 Degrees F To 255 Degrees F

System Benefits

• Fast and easy to use
• Flameless
• Permanent connections
• Wide capacity from 1/2" to 4"
• Consistent professional appearance
• Less equipment required
• Environmentally friendly
• Consistent professional appearance

Approved Applications

• Potable water
• Hydronic heating with glycol
• Chilled water
• Compressed air (200 PSI Max)
• Non medical gases (140 PSI Max)
• Low pressure steam (15 PSI Max)
• Environmentally friendly
• Consistent professional appearance

Approvals and Certificates

• NSP International
• UPC/IPC by IAPMO
• CSA International
• CRN
• MASS Approval
• JNS Group - ISO9001 / 14001 approved company

Warranty

JW Press products carry a 50 year against defects in material and workmanship.
