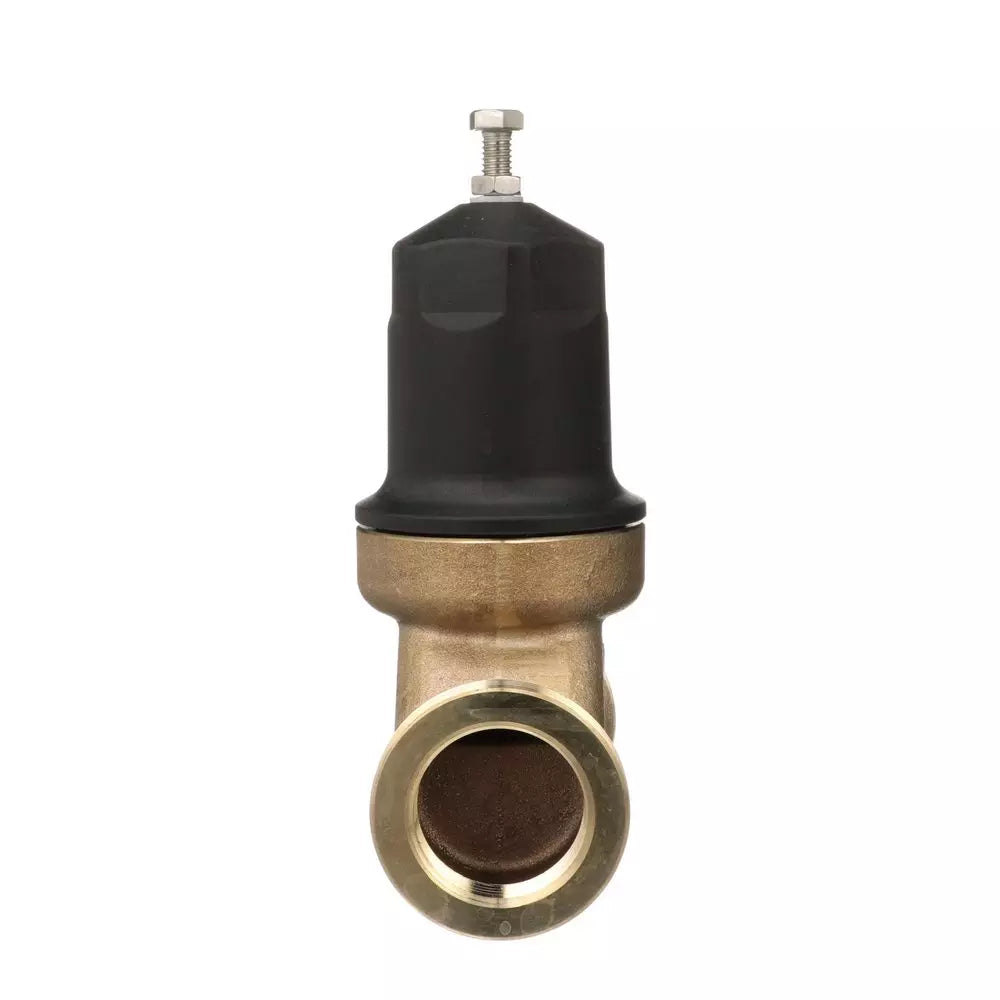

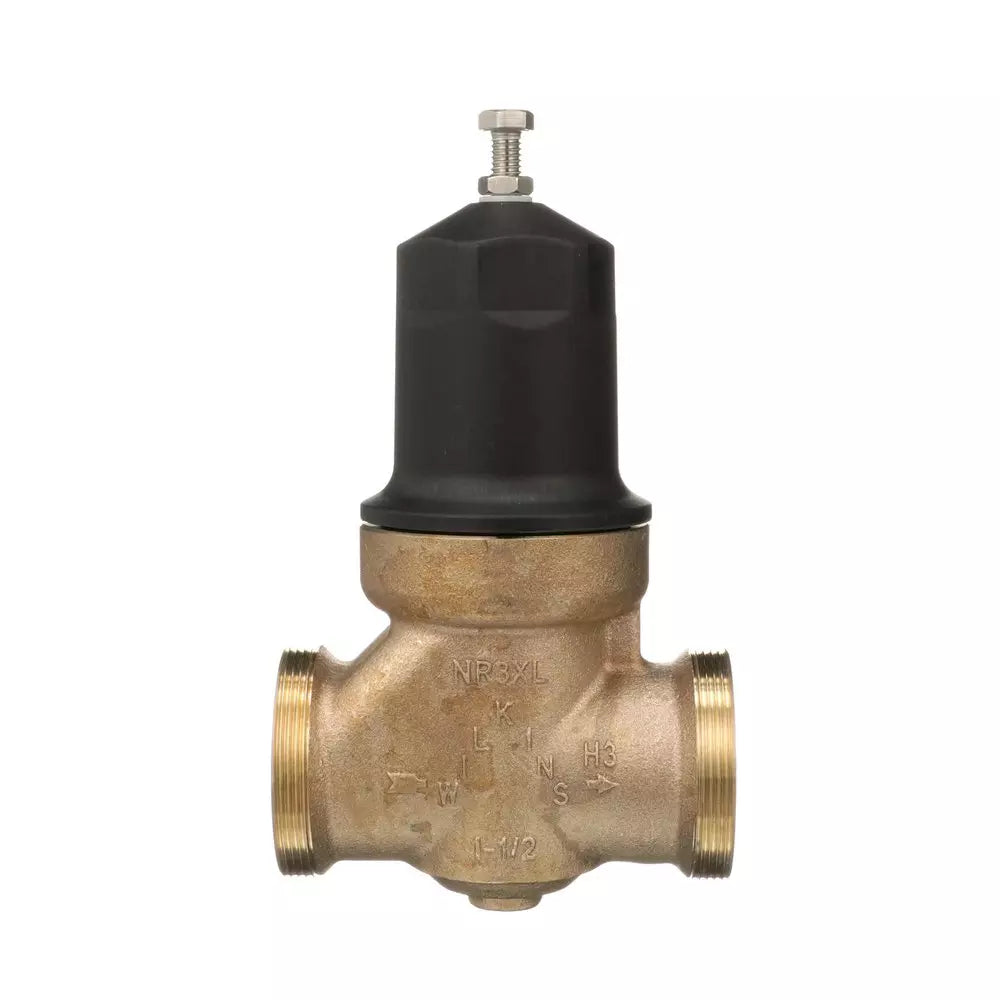

NR3XL 2 in. Cast Bronze Single Union FNPT Pressure Reducing Valve

• Short lay length and compact design installs in tight spaces
• Cartridge-loaded design simplifies repairs
• Time- and labor-saving tailpiece options include threaded, PEX, copper sweat and CPVC
• Quality integral stainless steel strainer screen holds up over time
• Highly durable, threaded bell resists corrosion and provides easy access to cartridge internals
• ASSE® Listed 1003
• IAPMO® Listed
• CSA® Certified
• ANSI 61
• Protects plumbing from excessive water pressures

Specifications

• ANSI: ANSI B1.20.1
• ASSE Standards: ASSE 1003
• CSA Certified: Yes
• Collection: NR3XL
• End Connection 1: FPT
• End Connection 2: FPT
• End Connections: FPT
• Fitting Size 1: 2 in
• Fitting Size 2: 2 in
• Height: 4-4/5 in
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 8-3/10 in
• Material: Cast Bronze, Rubber, Stainless Steel
• Material Type: 300, Buna-N, EPDM
• Maximum Temperature: 140
• NSF Certified: Yes
• Pressure - Maximum: 300 psi
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Recommended Valve Application: Water
• UL Listed: No
• UPC: 612052069579
• Valve Body Material: Cast Bronze
• Valve Body Style: Inline
• Valve Seat Material: EPDM Elastomer
• Valve Size: 2 in
• Valve Type: Pressure Reducing Valve
• Weight: 7.98 lb
• Width: 8-3/10 in
