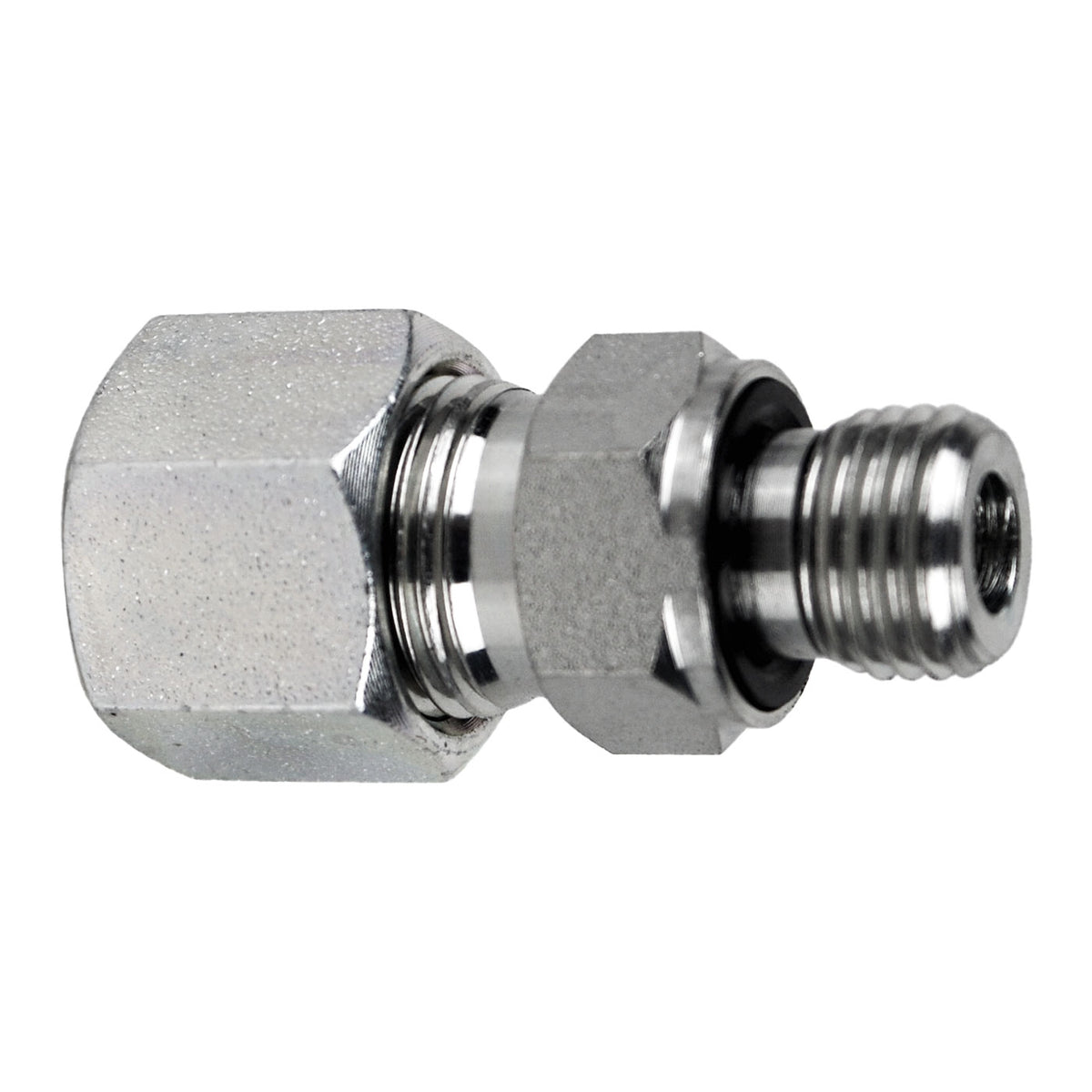

Male Metric DIN Adapter with ED Ring, S12 Metric Bite Type x M16 Male Metric, Steel

Midland Industries

Male Metric DIN Adapter with ED Ring, S12 Metric Bite Type x M16 Male Metric, Steel

$3.56
SKU: D8400-S12-16-ED
Quantity:

Male Metric DIN Adapter with ED Ring, S12 Metric Bite Type x M16 Male Metric, Steel

Midland’s D8400-S12-16-ED is a dependable DIN metric compression fitting engineered for high-performance sealing. Its bite-type design ensures tubing is securely gripped, even under dynamic pressure loads. Carbon steel body construction with anti-corrosion plating guarantees long service life in challenging conditions.

  • Compatible with automated and mobile equipment lines
  • Supports leak-free installation under pressure surges
  • DIN 2353 certified and ISO 8434-1 compliant
  • Optimized for hydraulic fluid systems and lubrication lines
  • Easy tube alignment for efficient installation


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: S12
    • Connection Size 2: M16
    • Connection Type: MBT|MM
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Male Metric
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 46.5 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Union
    • Material: Steel
    • Series: D8400-ED
    • Thread Size 1: M20 x 1.5
    • Thread Size 2: M16 x 1.5
    • California Prop 65: Cobalt
