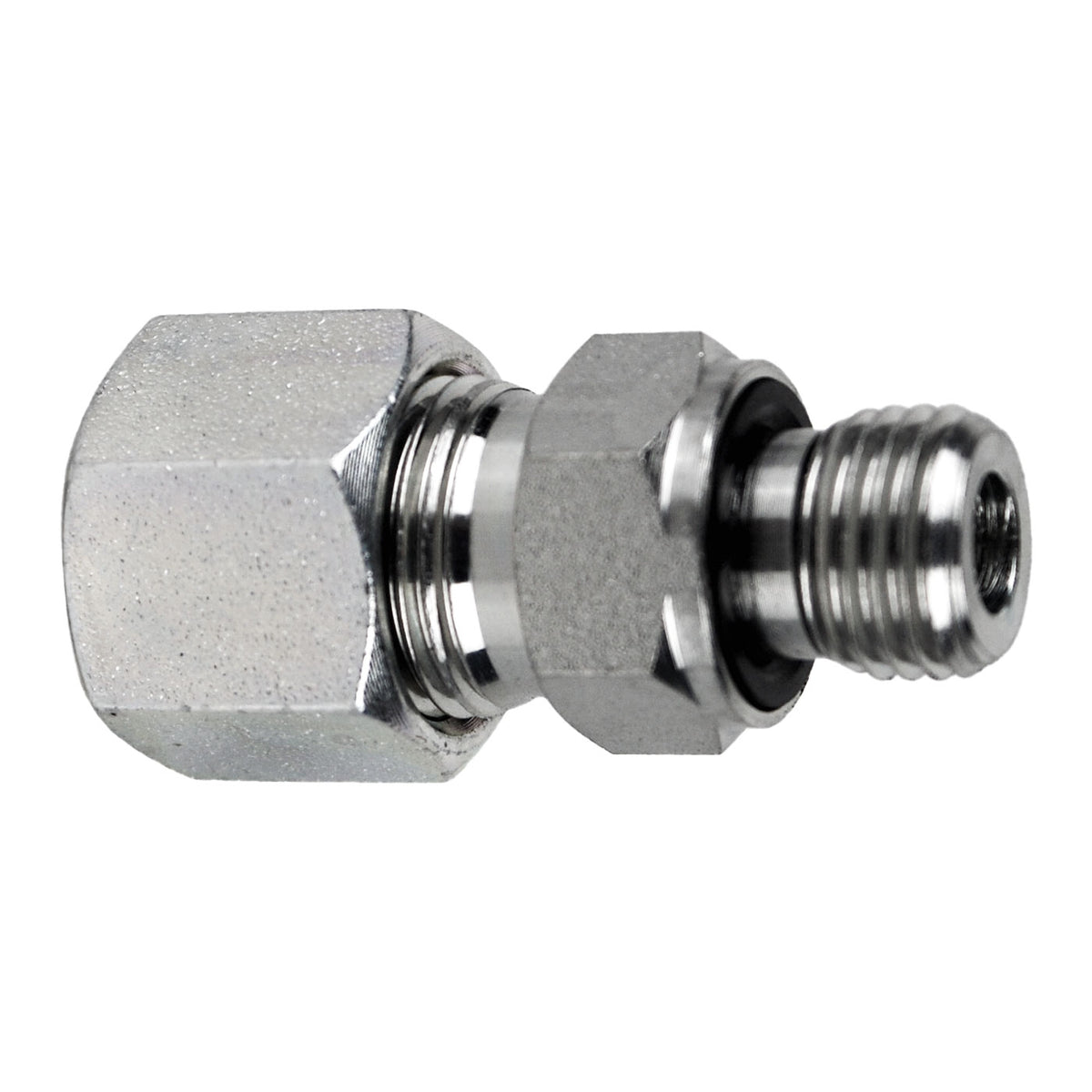

Male Metric DIN Adapter with ED Ring, L08 Metric Bite Type x M22 Male Metric, Steel

Midland Industries

Male Metric DIN Adapter with ED Ring, L08 Metric Bite Type x M22 Male Metric, Steel

$3.74
SKU: D8400-L08-22-ED
Quantity:

Male Metric DIN Adapter with ED Ring, L08 Metric Bite Type x M22 Male Metric, Steel

With proven sealing technology and precision-fit threading, the D8400-L08-22-ED DIN fitting is ideal for fluid conveyance in industrial and mobile applications. Its design supports leak-free performance across high-pressure, high-vibration conditions.

  • Resistant to vibration fatigue and thermal expansion
  • Supports leak-free installation under pressure surges
  • DIN 2353 certified and ISO 8434-1 compliant
  • Flareless design with bite-type ferrule grip
  • Compatible with automated and mobile equipment lines


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: L08
    • Connection Size 2: M22
    • Connection Type: MBT|MM
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Male Metric
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 39 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Union
    • Material: Steel
    • Series: D8400-ED
    • Thread Size 1: M14 x 1.5
    • Thread Size 2: M22 x 1.5
    • California Prop 65: Cobalt
