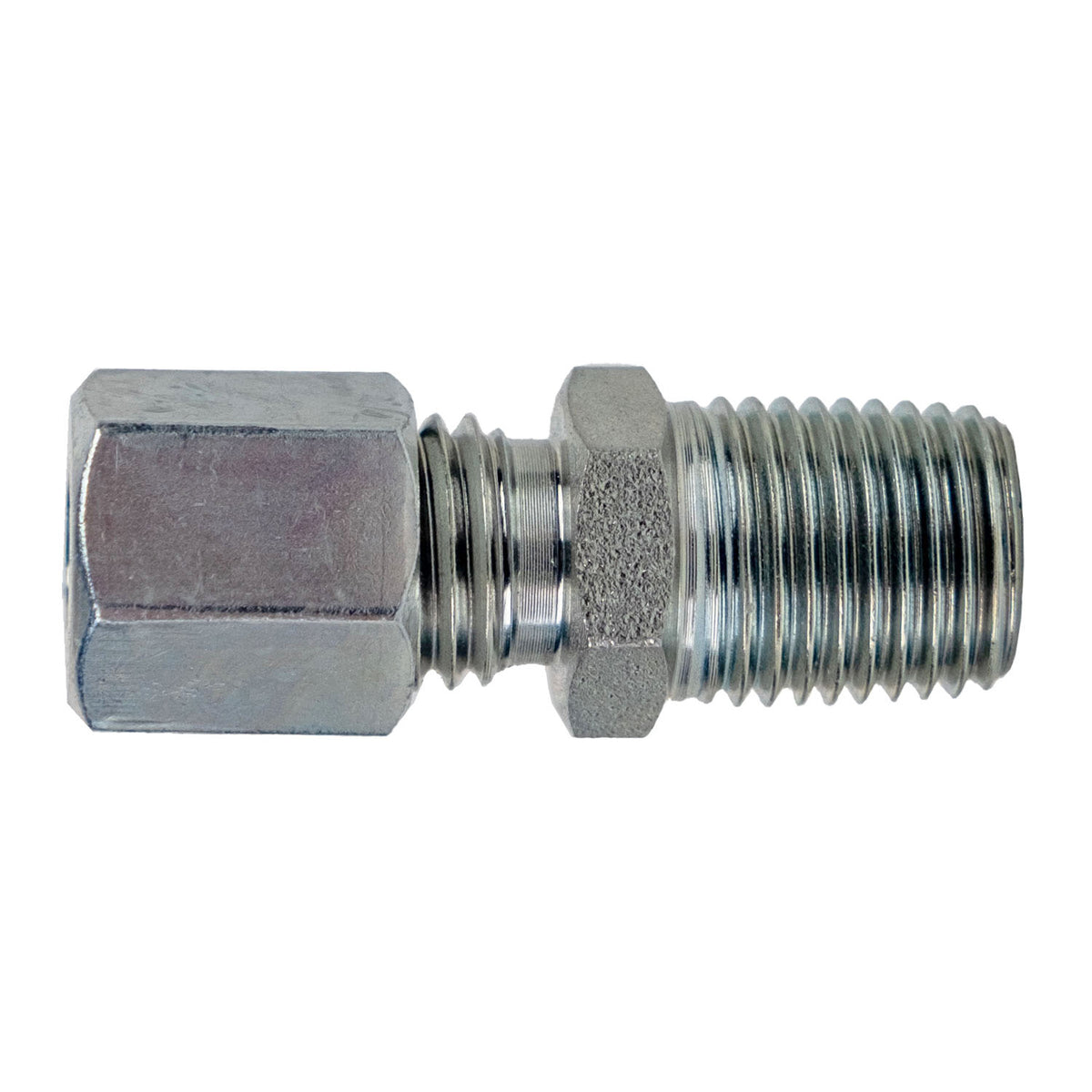

Male BSPT DIN Adapter, L10 Metric Bite Type x 1/8-in Male BSPT, Steel, Trivalent Chromium Zinc-Plated

Midland Industries

Male BSPT DIN Adapter, L10 Metric Bite Type x 1/8-in Male BSPT, Steel, Trivalent Chromium Zinc-Plated

$2.32
SKU: D7404-L10-02
Quantity:

Male BSPT DIN Adapter, L10 Metric Bite Type x 1/8-in Male BSPT, Steel, Trivalent Chromium Zinc-Plated

Engineered to withstand the pressures of modern industry, the D7404-L10-02 compression fitting excels in hydraulic and automation systems. Designed to DIN 2353 standards, it delivers secure, vibration-resistant sealing with reliable corrosion protection.

  • DIN 2353 certified and ISO 8434-1 compliant
  • Optimized for hydraulic fluid systems and lubrication lines
  • Compatible with automated and mobile equipment lines
  • Easy tube alignment for efficient installation
  • Flareless design with bite-type ferrule grip


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: L10
    • Connection Size 2: 1/8 in
    • Connection Type: MBT|MBSPT
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Male BSPT
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 32.6 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Adapter
    • Material: Steel
    • Series: D7404
    • Thread Size 1: M16 x 1.5
    • Thread Size 2: 1/8 - 28
    • California Prop 65: Cobalt
