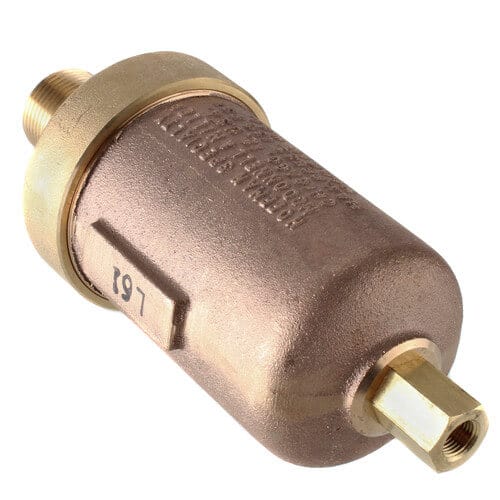

Hoffman Air Valve 401485 78, 3/4" Straight Water Main Air Valve

Hoffman

Hoffman Air Valve 401485 78, 3/4" Straight Water Main Air Valve

Sale price$295.97
SKU: 401485
Quantity:

For use on high pressure hot or cold water or glycolmains and process applications with specific gravitygreater than 0.7
Cast brass body
Tapped at top for 1„8" NPT safety drain connection fordischarging moisture
Body unscrews for easy cleaning
Built-in Check Valve
3„4" NPT straight shank
Maximum operating pressure 150 psig (10.3 bar)(Drop away pressure - maximum pressure against which the vent can open).
Maximum hydrostatic pressure 450 psig (31.1 bar)
Maximum temperature 250°F (121°C)
