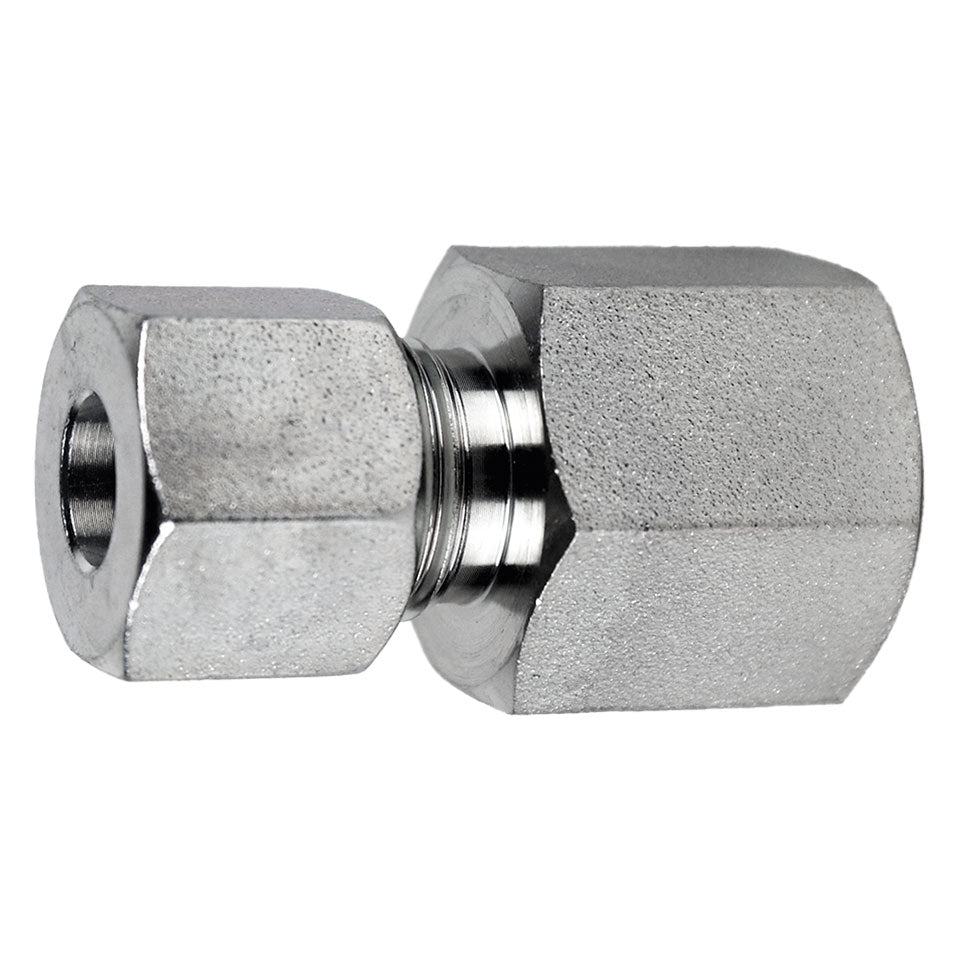

Female BSPP DIN Adapter, S20 Metric Bite Type x 1/2-in Female BSPP, Steel

Midland Industries

Female BSPP DIN Adapter, S20 Metric Bite Type x 1/2-in Female BSPP, Steel

$7.37
SKU: D7405-S20-08
Quantity:

Female BSPP DIN Adapter, S20 Metric Bite Type x 1/2-in Female BSPP, Steel

With proven sealing technology and precision-fit threading, the D7405-S20-08 DIN fitting is ideal for fluid conveyance in industrial and mobile applications. Its design supports leak-free performance across high-pressure, high-vibration conditions.

  • Optimized for hydraulic fluid systems and lubrication lines
  • Flareless design with bite-type ferrule grip
  • Resistant to vibration fatigue and thermal expansion
  • Supports leak-free installation under pressure surges
  • Compatible with automated and mobile equipment lines


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: S20
    • Connection Size 2: 1/2 in
    • Connection Type: MBT|FBSPP
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Female BSPP
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 54 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Adapter
    • Material: Steel
    • Series: D7405
    • Thread Size 1: M30 x 2
    • Thread Size 2: 1/2 - 14
    • California Prop 65: Cobalt
