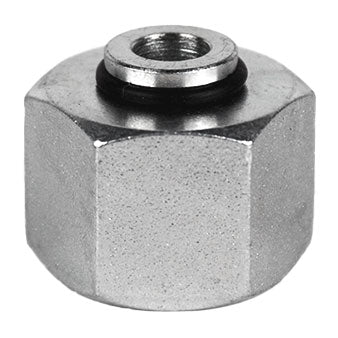

DIN Tube Cap, S38 Female Metric Swivel, Steel

Midland Industries

DIN Tube Cap, S38 Female Metric Swivel, Steel

$11.35
SKU: D0304-C-S38
Quantity:

DIN Tube Cap, S38 Female Metric Swivel, Steel

Midland’s D0304-C-S38 is a dependable DIN metric compression fitting engineered for high-performance sealing. Its bite-type design ensures tubing is securely gripped, even under dynamic pressure loads. Carbon steel body construction with anti-corrosion plating guarantees long service life in challenging conditions.

  • Flareless design with bite-type ferrule grip
  • DIN 2353 certified and ISO 8434-1 compliant
  • Corrosion-resistant plating extends component life
  • Supports leak-free installation under pressure surges
  • Easy tube alignment for efficient installation


    • Order now for fast shipping and professional-grade results.

    Application: For industrial machinery, machine tools, hydraulic, machinery, and other fields

    • Connection Size: S38
    • Connection Type: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 45 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Cap
    • Material: Steel
    • Series: D0304-C
    • Thread Size: M52 x 2
    • Standard Approvals: SAE 070220
    • California Prop 65: Cobalt
