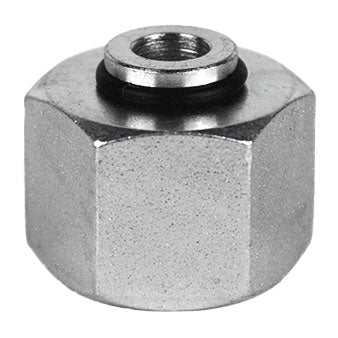

DIN Tube Cap, S25 Female Metric Swivel, Steel

Midland Industries

DIN Tube Cap, S25 Female Metric Swivel, Steel

$7.29
SKU: D0304-C-S25
Quantity:

DIN Tube Cap, S25 Female Metric Swivel, Steel

With proven sealing technology and precision-fit threading, the D0304-C-S25 DIN fitting is ideal for fluid conveyance in industrial and mobile applications. Its design supports leak-free performance across high-pressure, high-vibration conditions.

  • Easy tube alignment for efficient installation
  • Corrosion-resistant plating extends component life
  • Optimized for hydraulic fluid systems and lubrication lines
  • Supports leak-free installation under pressure surges
  • Compatible with automated and mobile equipment lines


    • Order now for fast shipping and professional-grade results.

    Application: For industrial machinery, machine tools, hydraulic, machinery, and other fields

    • Connection Size: S25
    • Connection Type: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 36 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Cap
    • Material: Steel
    • Series: D0304-C
    • Thread Size: M36 x 2
    • Standard Approvals: SAE 070220
    • California Prop 65: Cobalt
