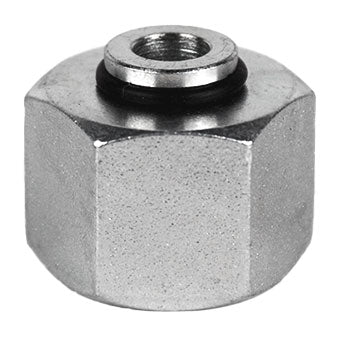

DIN Tube Cap, S16 Female Metric Swivel, Steel

Midland Industries

DIN Tube Cap, S16 Female Metric Swivel, Steel

$3.49
SKU: D0304-C-S16
Quantity:

DIN Tube Cap, S16 Female Metric Swivel, Steel

When performance matters, trust the D0304-C-S16 to maintain seal integrity under harsh thermal and mechanical stress. With zinc-plated carbon steel construction and precision-engineered threads, it’s built for long-term reliability in metric hydraulic systems.

  • Corrosion-resistant plating extends component life
  • Compatible with automated and mobile equipment lines
  • Easy tube alignment for efficient installation
  • Optimized for hydraulic fluid systems and lubrication lines
  • Supports leak-free installation under pressure surges


    • Order now for fast shipping and professional-grade results.

    Application: For industrial machinery, machine tools, hydraulic, machinery, and other fields

    • Connection Size: S16
    • Connection Type: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 25 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Cap
    • Material: Steel
    • Series: D0304-C
    • Thread Size: M24 x 1.5
    • Standard Approvals: SAE 070220
    • California Prop 65: Cobalt
