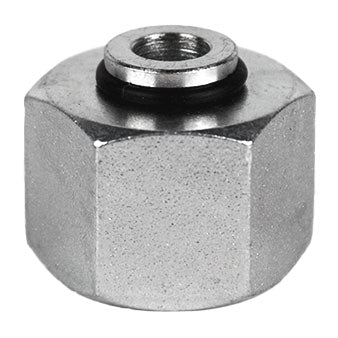

DIN Tube Cap, S14 Female Metric Swivel, Steel

Midland Industries

DIN Tube Cap, S14 Female Metric Swivel, Steel

$2.54
SKU: D0304-C-S14
Quantity:

DIN Tube Cap, S14 Female Metric Swivel, Steel

Engineered to withstand the pressures of modern industry, the D0304-C-S14 compression fitting excels in hydraulic and automation systems. Designed to DIN 2353 standards, it delivers secure, vibration-resistant sealing with reliable corrosion protection.

  • Optimized for hydraulic fluid systems and lubrication lines
  • Resistant to vibration fatigue and thermal expansion
  • Easy tube alignment for efficient installation
  • DIN 2353 certified and ISO 8434-1 compliant
  • Corrosion-resistant plating extends component life


    • Order now for fast shipping and professional-grade results.

    Application: For industrial machinery, machine tools, hydraulic, machinery, and other fields

    • Connection Size: S14
    • Connection Type: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 23.5 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Cap
    • Material: Steel
    • Series: D0304-C
    • Thread Size: M22 x 1.5
    • Standard Approvals: SAE 070220
    • California Prop 65: Cobalt
