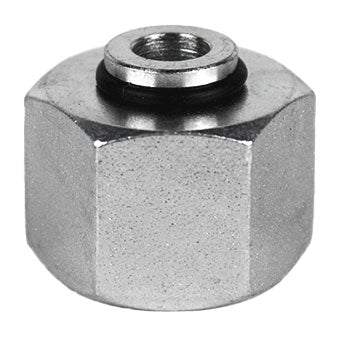

DIN Tube Cap, S10 Female Metric Swivel, Steel

Midland Industries

DIN Tube Cap, S10 Female Metric Swivel, Steel

$2.14
SKU: D0304-C-S10
Quantity:

DIN Tube Cap, S10 Female Metric Swivel, Steel

With proven sealing technology and precision-fit threading, the D0304-C-S10 DIN fitting is ideal for fluid conveyance in industrial and mobile applications. Its design supports leak-free performance across high-pressure, high-vibration conditions.

  • Compatible with automated and mobile equipment lines
  • Resistant to vibration fatigue and thermal expansion
  • DIN 2353 certified and ISO 8434-1 compliant
  • Optimized for hydraulic fluid systems and lubrication lines
  • Flareless design with bite-type ferrule grip


    • Order now for fast shipping and professional-grade results.

    Application: For industrial machinery, machine tools, hydraulic, machinery, and other fields

    • Connection Size: S10
    • Connection Type: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 21.5 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Cap
    • Material: Steel
    • Series: D0304-C
    • Thread Size: M18 x 1.5
    • Standard Approvals: SAE 070220
    • California Prop 65: Cobalt
