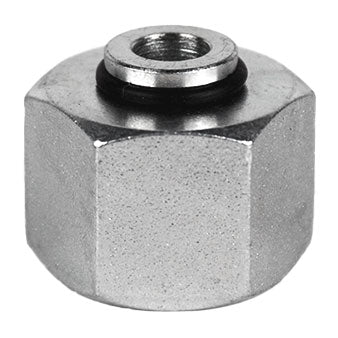

DIN Tube Cap, L22 Female Metric Swivel, Steel

Midland Industries

DIN Tube Cap, L22 Female Metric Swivel, Steel

$5.14
SKU: D0304-C-L22
Quantity:

DIN Tube Cap, L22 Female Metric Swivel, Steel

Midland’s D0304-C-L22 is a dependable DIN metric compression fitting engineered for high-performance sealing. Its bite-type design ensures tubing is securely gripped, even under dynamic pressure loads. Carbon steel body construction with anti-corrosion plating guarantees long service life in challenging conditions.

  • DIN 2353 certified and ISO 8434-1 compliant
  • Corrosion-resistant plating extends component life
  • Resistant to vibration fatigue and thermal expansion
  • Optimized for hydraulic fluid systems and lubrication lines
  • Flareless design with bite-type ferrule grip


    • Order now for fast shipping and professional-grade results.

    Application: For industrial machinery, machine tools, hydraulic, machinery, and other fields

    • Connection Size: L22
    • Connection Type: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Dimensions: 24.5 mm L
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: Cap
    • Material: Steel
    • Series: D0304-C
    • Thread Size: M30 x 2
    • Standard Approvals: SAE 070220
    • California Prop 65: Cobalt
