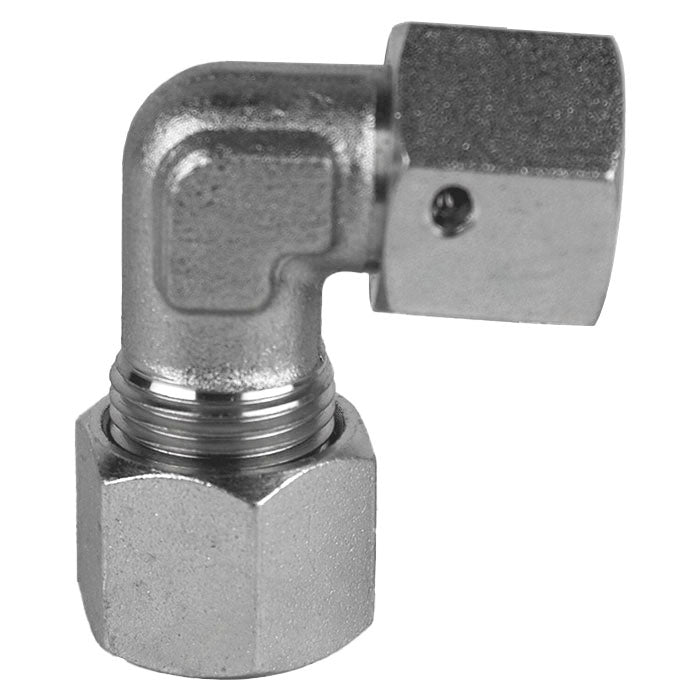

90-deg Swivel Elbow, S25 Metric Bite Type x S25 Female Metric Swivel, Steel

Midland Industries

90-deg Swivel Elbow, S25 Metric Bite Type x S25 Female Metric Swivel, Steel

$18.36
SKU: D6500-S25-S25
Quantity:

90-deg Swivel Elbow, S25 Metric Bite Type x S25 Female Metric Swivel, Steel

When performance matters, trust the D6500-S25-S25 to maintain seal integrity under harsh thermal and mechanical stress. With zinc-plated carbon steel construction and precision-engineered threads, it’s built for long-term reliability in metric hydraulic systems.

  • Resistant to vibration fatigue and thermal expansion
  • Flareless design with bite-type ferrule grip
  • Supports leak-free installation under pressure surges
  • DIN 2353 certified and ISO 8434-1 compliant
  • Easy tube alignment for efficient installation


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: S25
    • Connection Size 2: S25
    • Connection Type: MBT|FMS
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: 90-deg Elbow
    • Material: Steel
    • Series: D6500
    • Thread Size 1: M36 x 2
    • Thread Size 2: M36 x 2
    • California Prop 65: Cobalt
