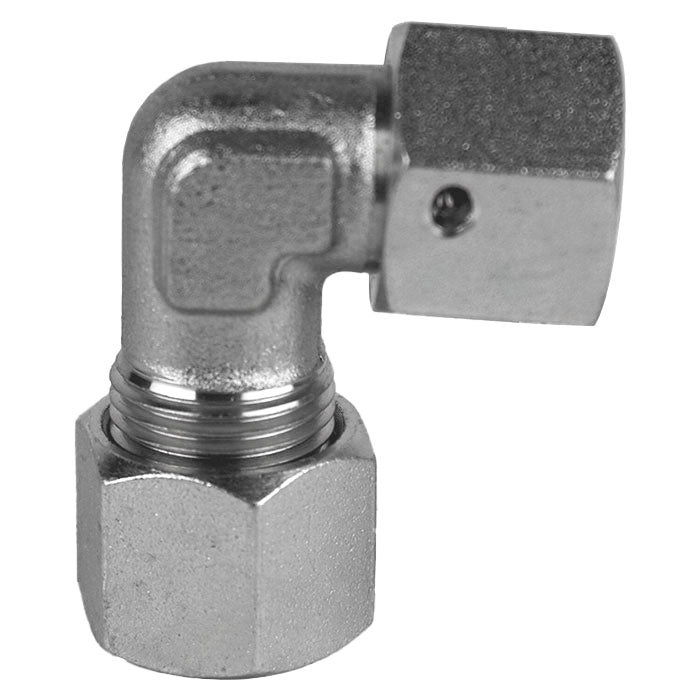

90-deg Swivel Elbow, S12 Metric Bite Type x S12 Female Metric Swivel, Steel

Midland Industries

90-deg Swivel Elbow, S12 Metric Bite Type x S12 Female Metric Swivel, Steel

$5.10
SKU: D6500-S12-S12
Quantity:

90-deg Swivel Elbow, S12 Metric Bite Type x S12 Female Metric Swivel, Steel

With proven sealing technology and precision-fit threading, the D6500-S12-S12 DIN fitting is ideal for fluid conveyance in industrial and mobile applications. Its design supports leak-free performance across high-pressure, high-vibration conditions.

  • Easy tube alignment for efficient installation
  • Supports leak-free installation under pressure surges
  • Flareless design with bite-type ferrule grip
  • Compatible with automated and mobile equipment lines
  • Optimized for hydraulic fluid systems and lubrication lines


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: S12
    • Connection Size 2: S12
    • Connection Type: MBT|FMS
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: 90-deg Elbow
    • Material: Steel
    • Series: D6500
    • Thread Size 1: M20 x 1.5
    • Thread Size 2: M20 x 1.5
    • California Prop 65: Cobalt
