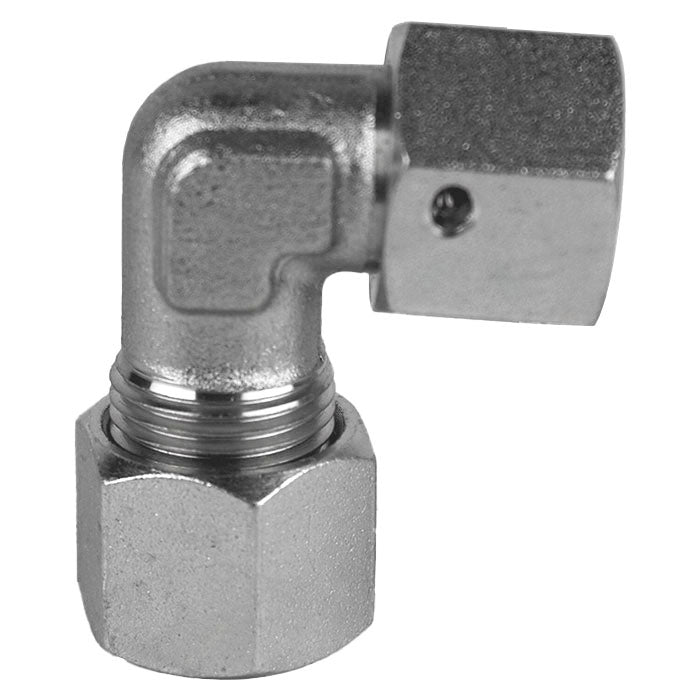

90-deg Swivel Elbow, S10 Metric Bite Type x S10 Female Metric Swivel, Steel

Midland Industries

90-deg Swivel Elbow, S10 Metric Bite Type x S10 Female Metric Swivel, Steel

$4.83
SKU: D6500-S10-S10
Quantity:

90-deg Swivel Elbow, S10 Metric Bite Type x S10 Female Metric Swivel, Steel

Engineered to withstand the pressures of modern industry, the D6500-S10-S10 compression fitting excels in hydraulic and automation systems. Designed to DIN 2353 standards, it delivers secure, vibration-resistant sealing with reliable corrosion protection.

  • Optimized for hydraulic fluid systems and lubrication lines
  • Compatible with automated and mobile equipment lines
  • Flareless design with bite-type ferrule grip
  • Easy tube alignment for efficient installation
  • Supports leak-free installation under pressure surges


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: S10
    • Connection Size 2: S10
    • Connection Type: MBT|FMS
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: 90-deg Elbow
    • Material: Steel
    • Series: D6500
    • Thread Size 1: M18 x 1.5
    • Thread Size 2: M18 x 1.5
    • California Prop 65: Cobalt
