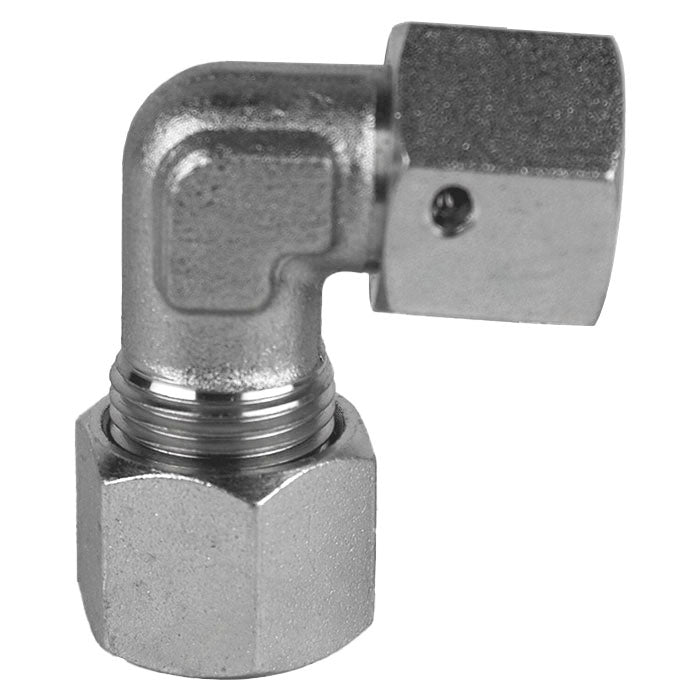

90-deg Swivel Elbow, L35 Metric Bite Type x L35 Female Metric Swivel, Steel

Midland Industries

90-deg Swivel Elbow, L35 Metric Bite Type x L35 Female Metric Swivel, Steel

$24.97
SKU: D6500-L35-L35
Quantity:

90-deg Swivel Elbow, L35 Metric Bite Type x L35 Female Metric Swivel, Steel

Engineered to withstand the pressures of modern industry, the D6500-L35-L35 compression fitting excels in hydraulic and automation systems. Designed to DIN 2353 standards, it delivers secure, vibration-resistant sealing with reliable corrosion protection.

  • Optimized for hydraulic fluid systems and lubrication lines
  • Easy tube alignment for efficient installation
  • DIN 2353 certified and ISO 8434-1 compliant
  • Compatible with automated and mobile equipment lines
  • Corrosion-resistant plating extends component life


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: L35
    • Connection Size 2: L35
    • Connection Type: MBT|FMS
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: 90-deg Elbow
    • Material: Steel
    • Series: D6500
    • Thread Size 1: M45 x 2
    • Thread Size 2: M45 x 2
    • California Prop 65: Cobalt
