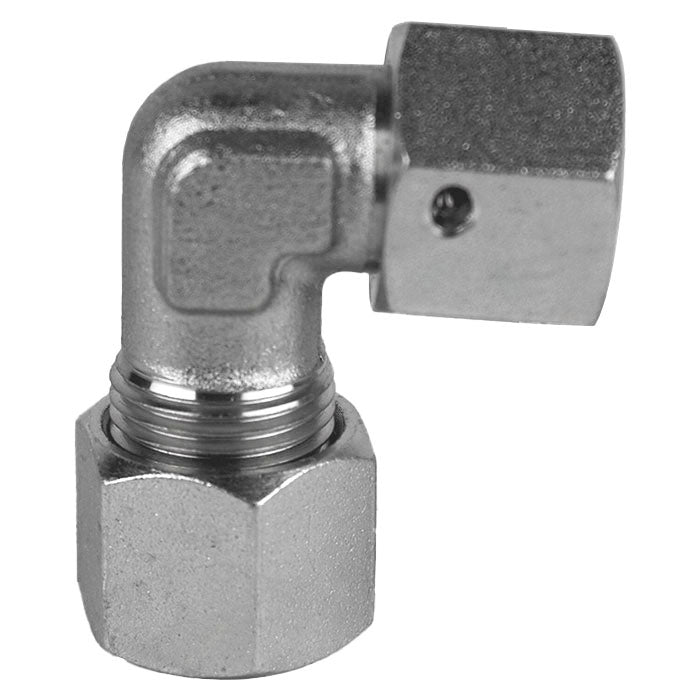

90-deg Swivel Elbow, L22 Metric Bite Type x L22 Female Metric Swivel, Steel

Midland Industries

90-deg Swivel Elbow, L22 Metric Bite Type x L22 Female Metric Swivel, Steel

$10.50
SKU: D6500-L22-L22
Quantity:

90-deg Swivel Elbow, L22 Metric Bite Type x L22 Female Metric Swivel, Steel

Midland’s D6500-L22-L22 is a dependable DIN metric compression fitting engineered for high-performance sealing. Its bite-type design ensures tubing is securely gripped, even under dynamic pressure loads. Carbon steel body construction with anti-corrosion plating guarantees long service life in challenging conditions.

  • Easy tube alignment for efficient installation
  • Corrosion-resistant plating extends component life
  • DIN 2353 certified and ISO 8434-1 compliant
  • Optimized for hydraulic fluid systems and lubrication lines
  • Supports leak-free installation under pressure surges


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: L22
    • Connection Size 2: L22
    • Connection Type: MBT|FMS
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Female Metric Swivel
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: 90-deg Elbow
    • Material: Steel
    • Series: D6500
    • Thread Size 1: M30 x 2
    • Thread Size 2: M30 x 2
    • California Prop 65: Cobalt
