Midland Industries

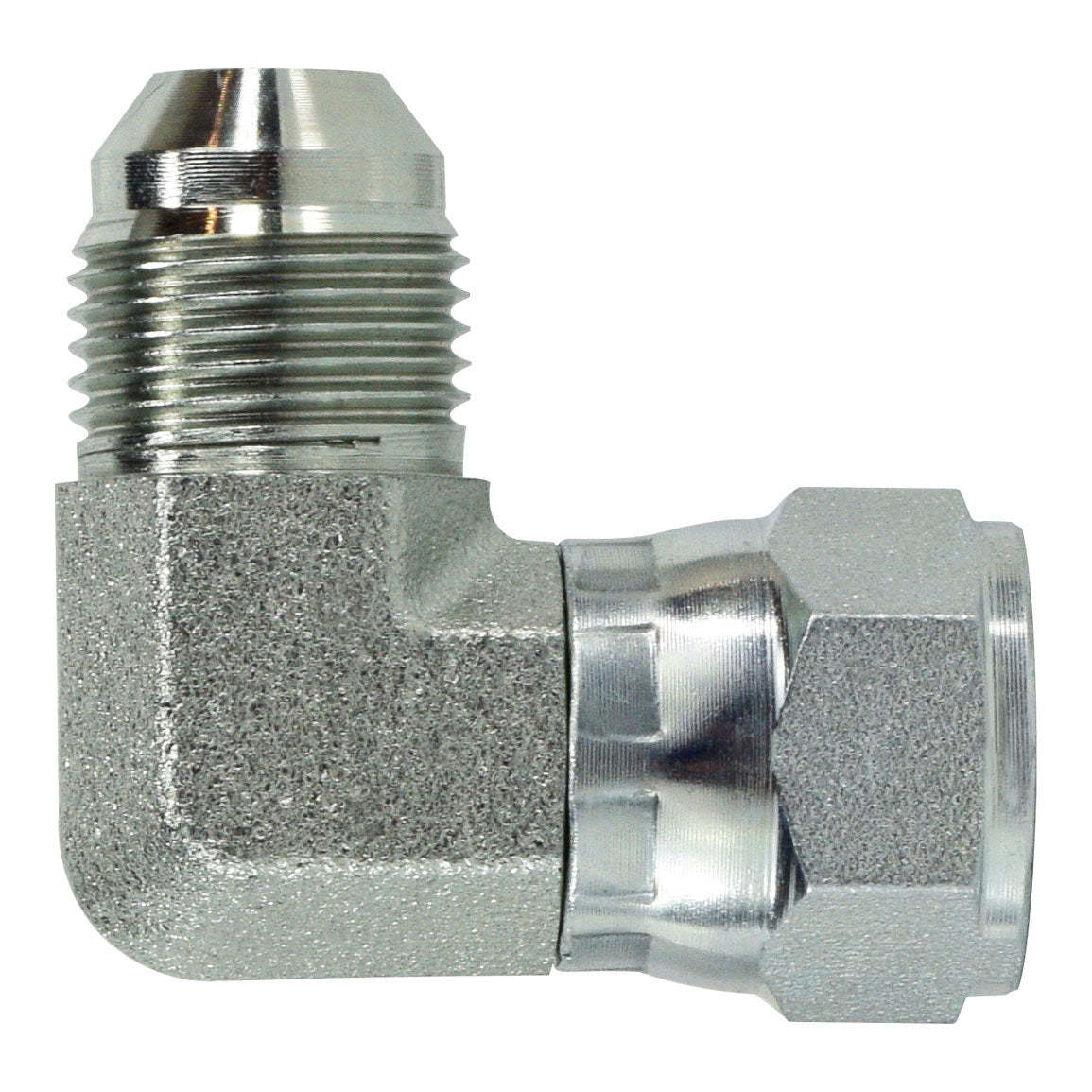

90-deg Swivel Elbow, 3/4-in Male JIC x 5/8-in Female JIC Swivel, Steel
Quantity:
90-deg Swivel Elbow, 3/4-in Male JIC x 5/8-in Female JIC Swivel, Steel
- Connection Size 1: 3/4 in
- Connection Size 2: 5/8 in
- Connection Type: MJIC|FJIC Swivel
- Connection Type 1: Male JIC
- Connection Type 2: Female JIC Swivel
- Fitting Type: 90-deg Elbow
- Material: Steel
- Maximum Operating Pressure: 3000 psi
- Operating Temperature: 375 ˚F
- Series: 6500
- Thread Size 1: 1-1/16 - 12
- Thread Size 2: 7/8 - 14
- Standard Approvals: SAE J514, SAE 070221, MS 51521
- California Prop 65: Cobalt
