Midland Industries

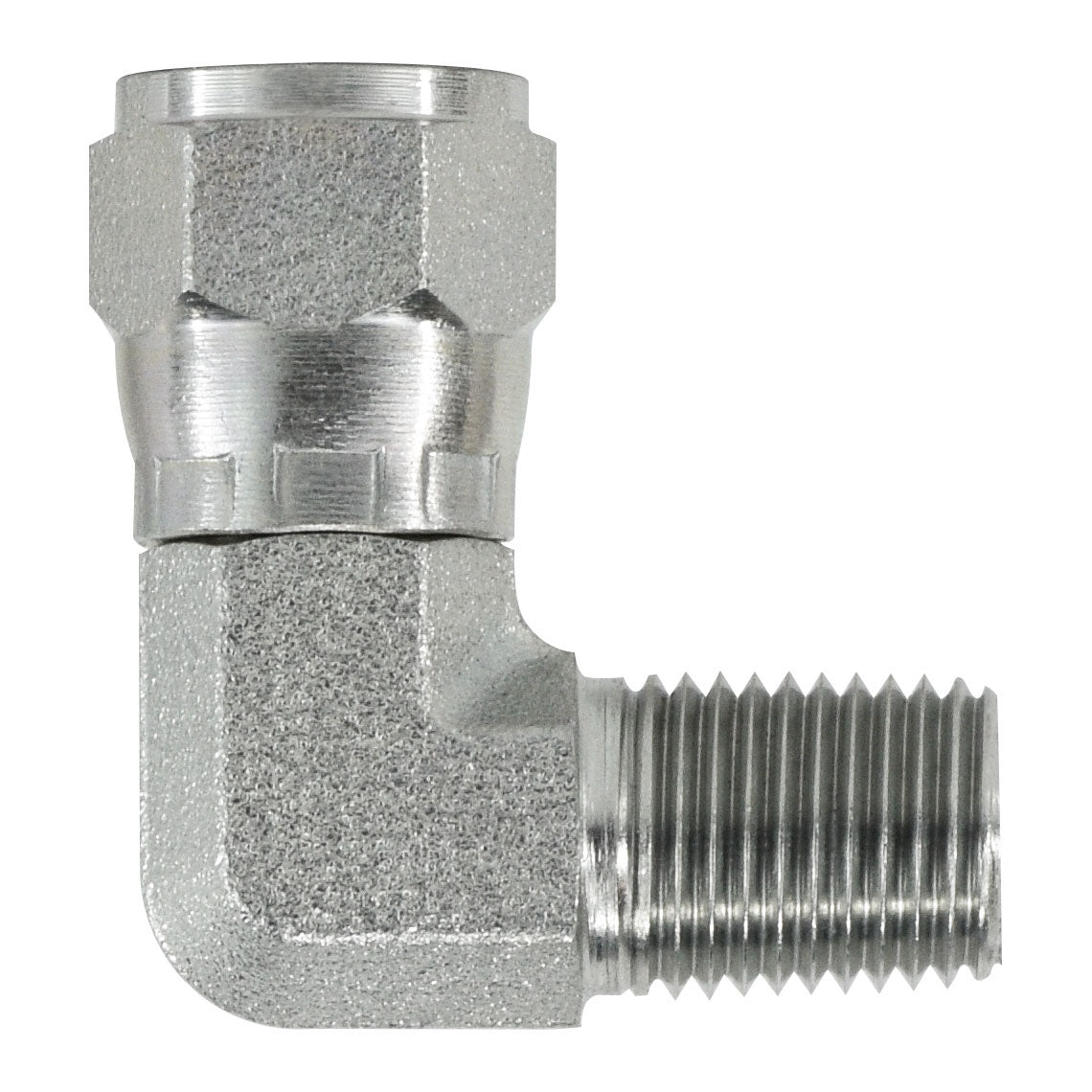

90-deg Swivel Elbow, 1/4-in Female JIC Swivel x 1/8-in Male NPTF, Steel
Quantity:
90-deg Swivel Elbow, 1/4-in Female JIC Swivel x 1/8-in Male NPTF, Steel
- Connection Size 1: 1/4 in
- Connection Size 2: 1/8 in
- Connection Type: FJIC Swivel|MPT
- Connection Type 1: Female JIC Swivel
- Connection Type 2: Male NPTF
- Fitting Type: 90-deg Elbow
- Material: Steel
- Maximum Operating Pressure: 4500 psi
- Operating Temperature: 375 °F
- Series: 6501
- Thread Size 1: 7/16 - 20
- Thread Size 2: 1/8 - 27
- Standard Approvals: SAE J514, SAE 070221, MS 51521
- California Prop 65: Cobalt
