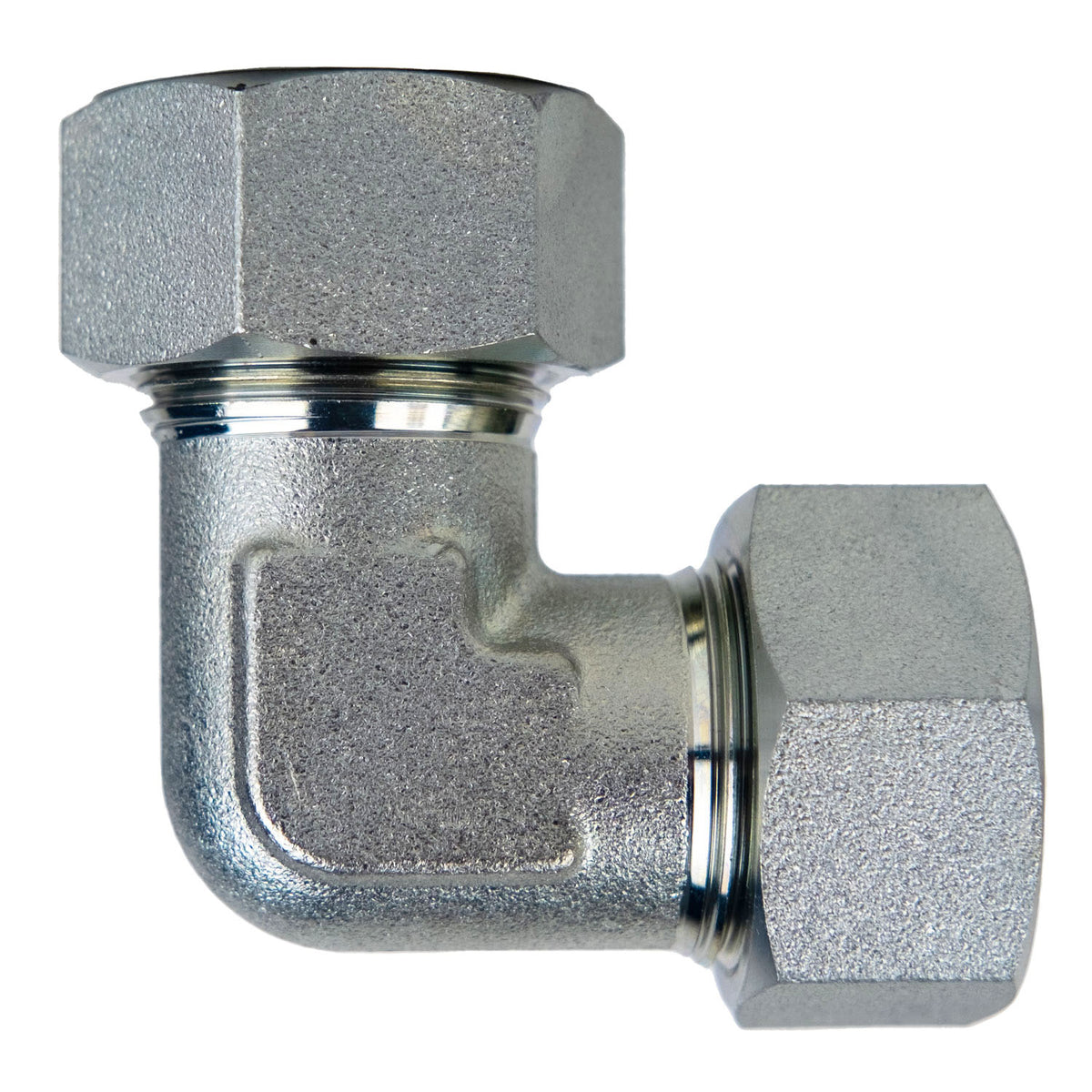

90-deg Elbow with Cutting Ring and Nut, S16 Metric Bite Type x S16 Metric Bite Type

Midland Industries

90-deg Elbow with Cutting Ring and Nut, S16 Metric Bite Type x S16 Metric Bite Type

$8.00
SKU: D2500-S16-S16
Quantity:

90-deg Elbow with Cutting Ring and Nut, S16 Metric Bite Type x S16 Metric Bite Type

Engineered to withstand the pressures of modern industry, the D2500-S16-S16 compression fitting excels in hydraulic and automation systems. Designed to DIN 2353 standards, it delivers secure, vibration-resistant sealing with reliable corrosion protection.

  • Supports leak-free installation under pressure surges
  • Optimized for hydraulic fluid systems and lubrication lines
  • Compatible with automated and mobile equipment lines
  • Resistant to vibration fatigue and thermal expansion
  • Flareless design with bite-type ferrule grip


    • Order now for fast shipping and professional-grade results.
    • Connection Size 1: S16
    • Connection Size 2: S16
    • Connection Type: MBT|MBT
    • Connection Type 1: Metric Bite Type
    • Connection Type 2: Metric Bite Type
    • Dimension Standards: DIN 2353, ISO 8434-1
    • Finish: Trivalent Chromium Zinc-Plated
    • Fitting Type: 90-deg Elbow
    • Material: Steel
    • Series: D2500
    • Thread Size 1: M24 x 1.5
    • Thread Size 2: M24 x 1.5
    • California Prop 65: Cobalt
