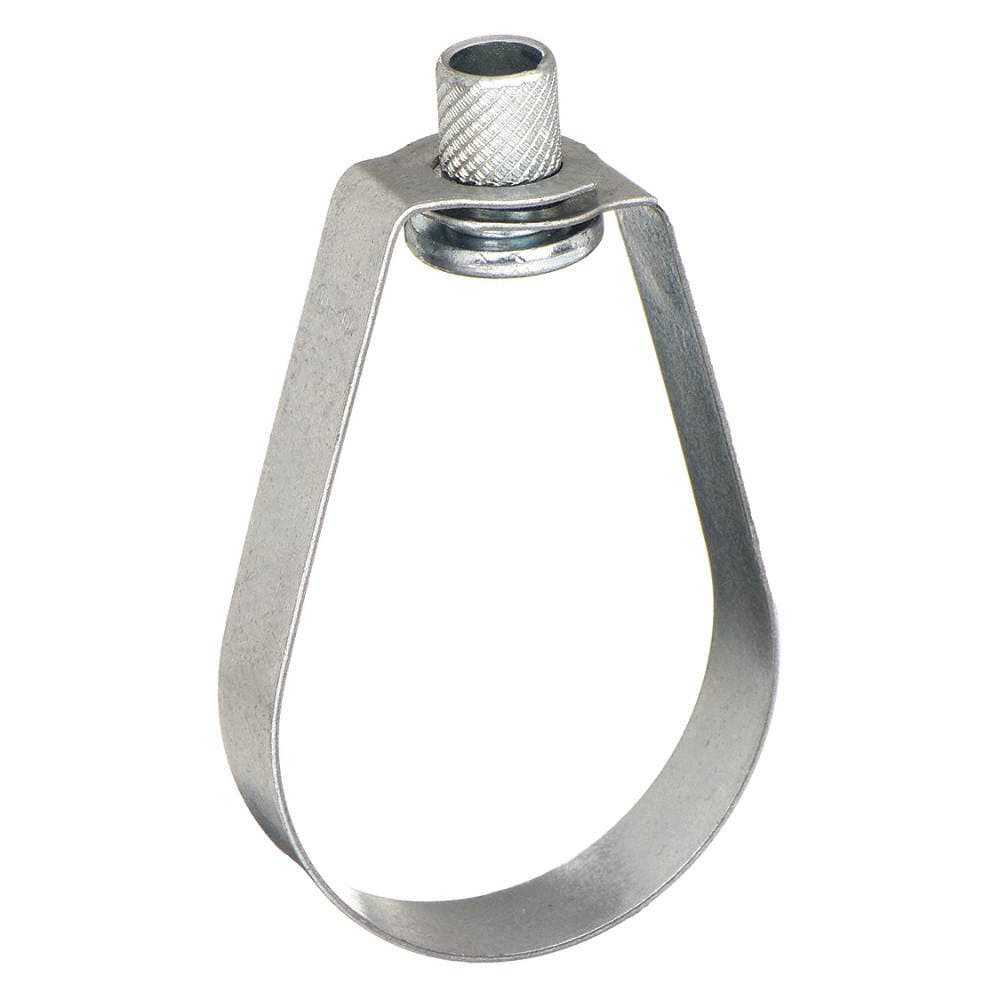

8" Pre Galvanized Swivel Hanger - NFPA

Piers Manufacturing

8" Pre Galvanized Swivel Hanger - NFPA

Sale price$6.43
SKU: HSRN-GP08
Quantity:
Designed for suspending pipe with vertical adjustment
  • Knurled insert nut allows for vertical adjustment after installation
  • Underwriters Laboratories Listed (UL)
  • National Fire Protection Association Standardized (NFPA)
  • When using an oversize: clevis, it is recommended to install a full-width spacer on the cross bolt to prevent failure due to disfiguring the U-strap
  • Complies with Federal Specification WW-H-171E & A-A-1192A Type 10, Manufacturers Standardization Society (MSS) SP-69 & SP-58 Type 10
  • Designed for the suspension of insulated pipe lines
  • Plastic coating separates the copper tubing from the steel ring for electrolytic resistance and also minimizes noise and vibration
  • size:s: 1/2" - 8"
  • material: Steel
  • Finish: Pre Galvanized
  • Approvals: UL, NFPA, Complies with MSS SP-69 & SP-58 Type 10, WW-H-171E & A-A-1192A Type 10
