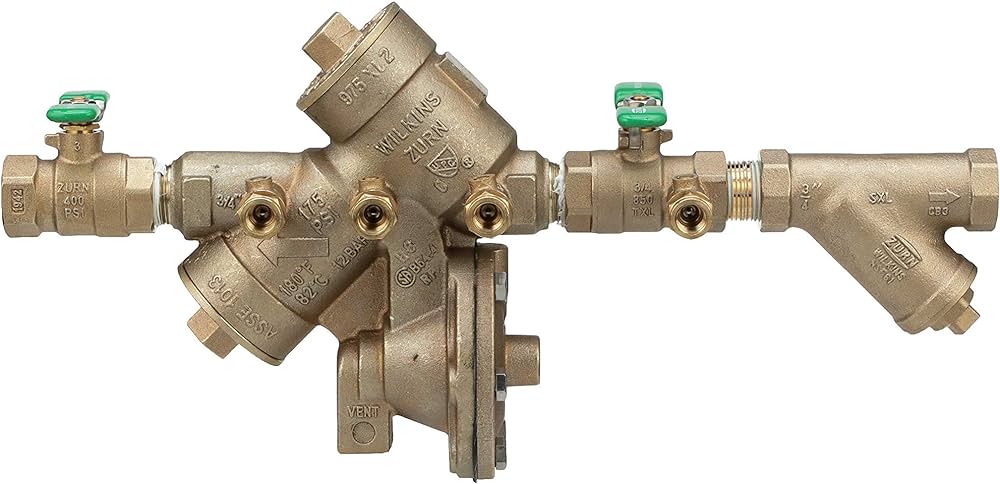

3/4" Wilkins 975XL2 Reduced Pressure Principle Assembly (Lead Free)
Quantity:
Application
This reduced pressure principle assembly is designed for installation on potable water lines to protect against both back-siphonage and back-pressure of contaminated water into the potable water supply. Assembly shall provide protection where a potential health hazard exists
Features
Materials
This reduced pressure principle assembly is designed for installation on potable water lines to protect against both back-siphonage and back-pressure of contaminated water into the potable water supply. Assembly shall provide protection where a potential health hazard exists
Features
- Easy access to first check simplifies debris removal
- Repair kit allows for a quick fix, instead of a full replacement
- Entire unit serviceable in line
- Pre-assembled with backflow, pressure regulation, and strainer components
- Low-lead law compliant
- ASSE® Listed 1013
- IAPMO® Listed
- CSA® Certified B64.4
- AWWA Compliant C511
- Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
Materials
- Main valve body: Cast Bronze ASTM B 584
- Access covers: Cast Bronze ASTM B 584
- Fasteners: Stainless Steel, 300 Series
- Elastomers: Silicone (FDA Approved), Buna Nitrile (FDA Approved)
- Polymers: Noryl, NSF Listed
- Springs: Stainless steel, 300 series
| Size: |
3/4" |
|---|---|
| Max Pressure (PSI): |
175 |
| Hydrostatic Test Pressure: |
350 PSI |
| Water Temperature: |
180°F |
| Weight (lbs): |
10 lbs |
| Lead Free: |
Yes |
| Material: |
Bronze |
| Connection Type: |
Female Threaded |
