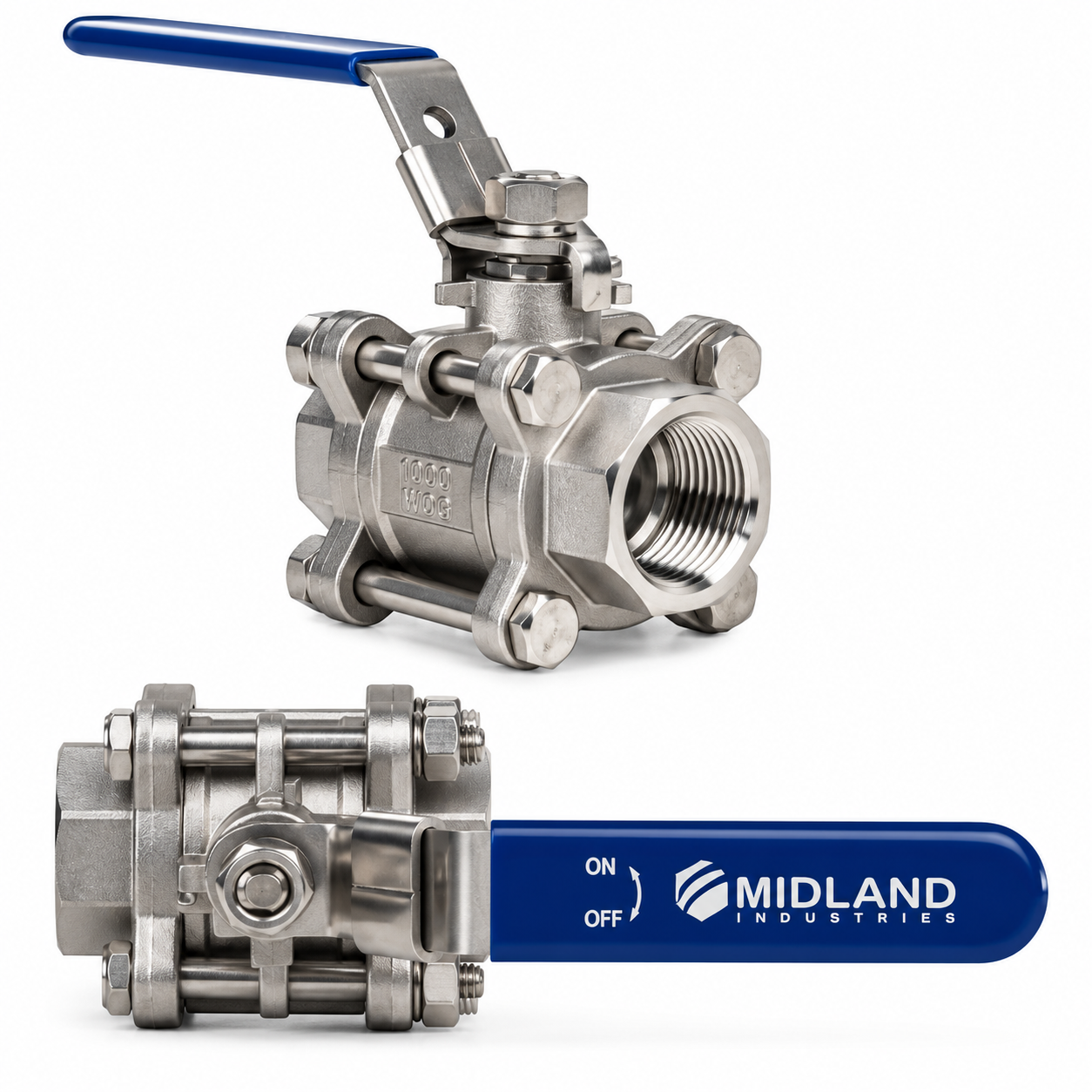

1/2 in. 316 Stainless Steel 3-Piece Ball Valve - Standard Port, 1000 PSI WOG, FPT x FPT
Size:1/2 in.
Quantity:
This 1/2 in. 3-piece ball valve is machined from 316 stainless steel for excellent corrosion resistance in demanding industrial, marine, chemical and food-processing service. It features a standard port design rated to 1000 psi WOG, FPT x FPT connections and a 1/4-turn locking handle for fast, positive shut-off.
Features
- 316 stainless steel body and ball for superior corrosion resistance
- Standard Port design for compact, economical installation
- Rated to 1000 psi WOG across -14 to 300 °F
- PTFE seats and seals for reliable, low-torque sealing
- 1/4-Turn Locking Handle with vinyl insulator grip
- Conforms to CF8M
Specifications
- Part Number: 949272
- Nominal Size: 1/2 in
- Connection Type: FPT x FPT
- Thread Size: 1/2 - 14
- Port Type: Standard
- Pressure Rating: 1000 psi WOG
- Temperature Rating: -14 to 300 °F
- Body Material: 316 Stainless Steel
- Ball Material: 316 Stainless Steel
- Stem Material: 316 Stainless Steel
- Seat Material: PTFE
- Seal Material: PTFE
- Packing Material: PTFE
- Handle Material: 307 Stainless Steel w/ Vinyl Insulator
- Trim Material: 304 Stainless Steel Washer and Nut, 304 Stainless Steel Gland, PTFE Thrust Washer
- Material Standard: CF8M
- Operator Type: 1/4-Turn Locking Handle
- Inlet to Outlet Length: 2.48 in
- Top to Inlet Center: 2.48 in
- Opening Size: 0.59 in
- Media: Water, Oil, Gas
