Piers Manufacturing

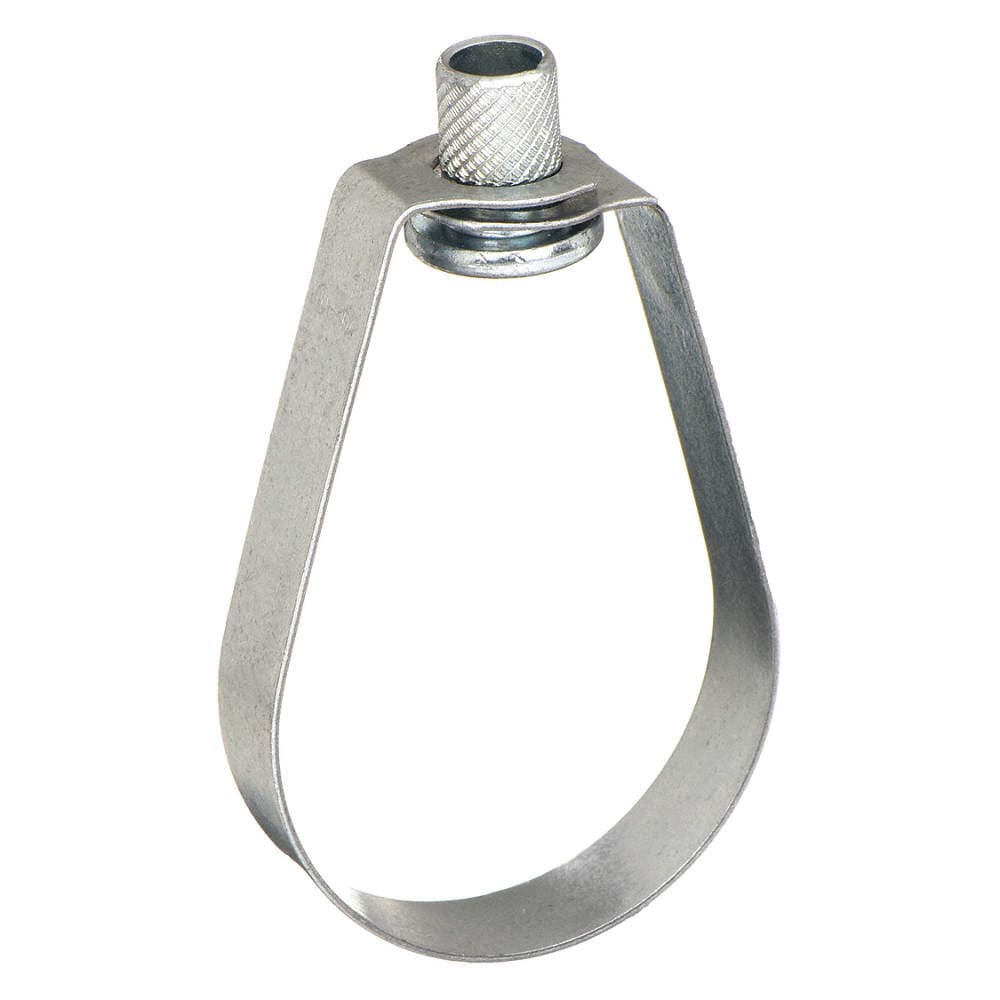

4" Pre Galvanized Swivel Hanger - NFPA
Quantity:
Designed for suspending pipe with vertical adjustment
- Knurled insert nut allows for vertical adjustment after installation
- Underwriters Laboratories Listed (UL)
- National Fire Protection Association Standardized (NFPA)
- When using an oversize: clevis, it is recommended to install a full-width spacer on the cross bolt to prevent failure due to disfiguring the U-strap
- Complies with Federal Specification WW-H-171E & A-A-1192A Type 10, Manufacturers Standardization Society (MSS) SP-69 & SP-58 Type 10
- Designed for the suspension of insulated pipe lines
- Plastic coating separates the copper tubing from the steel ring for electrolytic resistance and also minimizes noise and vibration
- size:s: 1/2" - 8"
- material: Steel
- Finish: Pre Galvanized
- Approvals: UL, NFPA, Complies with MSS SP-69 & SP-58 Type 10, WW-H-171E & A-A-1192A Type 10
